Powerful And Compact Compressor

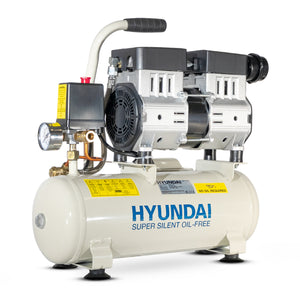

The HY5508 is a powerful yet compact 550w direct-drive oil-free low noise, near silent 8 litre air compressor from Hyundai.
Suitable For Various Jobs
Designed for DIY and light applications the HY5508 silenced oil-free air compressor is ideal for air brushing, blowing away dirt and dust, nailing, inflating tyres & inflatables or operating air tools.
Ultra Lightweight Compressor
Weighing only 15kg the HY5508 whisper compressor is lighter than your conventional piston type air compressor and is completely oil-free, so there is no risk of oil contamination in the air supply.
Portable Air Compresor
The HY5508 features 4 robust rubber mounted feet and a carry handle for easy manoeuvrability.
Powered By Standard Mains Supply
Powered by a 550w motor directly connected to the oil-less air compressor pump and rubber mounted for low vibration, makes it ideal for the home, light workshop or garage use and is powered by standard mains 230v supply.
Maintenance Free
This maintenance-free compressor uses an oil-free diaphragm pump to produce a clean air supply and considerably reduce noise compared to conventional piston compressors.
8L Tank
With an 8-litre tank capacity, this near silent compressor provides an air displacement of 4CFM/ 120 litres per minute and a discharge pressure of 7 bar/ 100 psi.
Euro Quick Release Connectors
Fitted with Euro quick release connectors this compressor is fitted with a standard 13A UK Plug.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
In The Box:
- HY5508 Electric Air Compressor
- User Manual
Warranty
Covered by Hyundai 2 year standard warranty.
Specifications
Model | HY5508 |
---|---|
Start Method | Switch |
Fuel/Power Source | Electric |
Cable Length (m) | 1.5 |
Stationary / Wheeled | Stationary with carry handle |
Drive Type | Direct Drive |
Lubrication Type | Oil Free |
Tank Capacity (L) | 8 |
Tank Material | Steel |
Duty Cycle | - |
Discharge Pressure (psi/bar) | 100/7 |
Max Pressure (psi/bar) | 100/7 |
Air Flow FAD (L/min) | 53 |
Air Flow FAD (CFM) | 2 |
Air Displacement (L/min) | 120 |
Air Displacement (CFM) | 4.2 |
Air Outlet Connection | Euro Quick Release |
Voltage | 230 |
Rated Power (w) | 550 |
Motor Power kW/hp | 0.55/0.75 |
Pump (RPM) | 1450 |
Speed (RPM) | 1040 |
Noise Level @ 7m (dB) | 60 |
Gross Weight (kg) | 16.2 |
Net Weight (kg) | 15 |
Fully Assembled Dimensions (H x W x L) (mm) | 520 x 170 x 470 |
Packaged Dimensions (H x W x L) (mm) | 560 x 255 x 540 |
Product Type | Air Compressor |
Warranty (years) | 2 |
Model EAN | 5056275722715 |
In The Box | HY5508 Electric Air Compressor , User Manual |
Feature 1 | Low Noise Air Compressor From Hyundai |
Feature 2 | Oil Free - Means Low Maintenance & No Oil Contamination in the Compressed Air |
Feature 3 | Powered by a 550W, 230V Direct Drive Electric Motor provides 4 CFM of Air Displacement - The 8-litre tank is capable of 120 Litres / Minute at 100PSI |
Feature 4 | HY5508 is fitted with Euro (Q/R) quick release Air Connections, standard 13A 3 Pin UK socket & weighing only 15KG - means the oil free air compressor is Ultra Lightweight & Manoeuvrable |
Feature 5 | Covered by Hyundai 2 Year Warranty Including Full UK Spares Available for years to come. |
