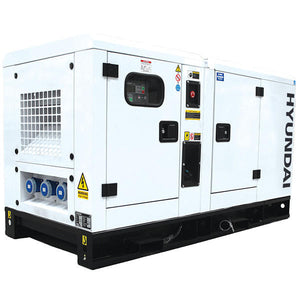

Hyundai 18kW / 22kVA Three Phase, 400v / 230v Diesel Generator, 1500rpm Water-cooled Slow Running Genset, Silenced Canopy | DHY22KSE

Orders to be received within 1 - 5 working days. There may be a slight delay in courier tracking becoming available. Postcode exclusions apply.

4 months at 0% interest, Click for more info

£7,499.99 inc. VAT
£6,249.99 ex. VAT
Adding to cart… The item has been added

Orders to be received within 1 - 5 working days. There may be a slight delay in courier tracking becoming available. Postcode exclusions apply.

4 months at 0% interest, Click for more info

Be the first to review this product


18kW Three-Phase Diesel Generator

The DHY22KSE is a powerful three-phase diesel generator from Hyundai. Suitable for powering three-phase equipment in your home, business or factory, this diesel genset has a maximum output of 22KVA.

Powerful Hyundai Engine

Powered by a 31hp HY490 diesel engine, the DHY22KSE is able to produce a maximum output of 22KVA / 18kW.

Three-Phase Power

3-phase 400/230v generators are generally manufactured to power 400 volt, 3-phase equipment. Even though you can run a small amount of 230v equipment on a solo basis from them, this is not their intended purpose and it can be difficult to 'balance' the phases and stop the generator from tripping out.

In order to run 230v output only, and reach the generator's output capacity you will need to accurately 'balance' the loads on each phase (the amount you are drawing from each phase of electricity).

You can read more about phase imbalance and the pitfalls of running 230v from a 400v generator in our article here.

If you are unsure whether this is the right generator for your application, we advise you to speak to a qualified electrician/generator installer or speak to us for advice.

Fitted with AVR Alternator

Equipped with an AVR alternator to produce clean energy, the DHY22KSE is suitable for powering sensitive electronic equipment, such as TVs, PCs and laptops, in your home or business.

ATS Compatible

The DHY22KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off.

This is ideal for those who need to guarantee constant power - for example, if you run servers or have refrigeration units.

Silenced Generator

Housed in a weather-proof 'silenced' canopy, the DHY22KSE produces only 65dB @ 7 metres which makes it a quiet standby generator that won’t interrupt you at home or work.

1500rpm Generator

1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.

1500rpm generators have slower running, water-cooled engines which are less stressed than 3000rpm generators, which make them the best option if you’re going to use your generator as your main power source and will also prolong its lifespan.

Economical Generator

Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.

Delivery

Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.

2 Year Warranty

This 22kVA diesel generator comes with a 2 year Hyundai warranty with full UK parts and service backup for added peace of mind. Read our warranty terms here.

Generator kVA Ratings

All of our generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 - therefore the 'assumed' kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.

Specifications
Model DHY22KSE
Rated/Prime kVA* 20
Rated/Prime kW 16
Max/Standby kVA* 22
Max/Standby kW 18
Phase Three
Voltage 230 / 400
Connection Method(s) 2 x 230V/32A 1 x 230vV/63A Busbar
Rated Speed (RPM) 1500
Frequency (Hz) 50
Max/Continuous Current (Amps) 32 / 29
Power Factor (Cosφ) 0.8
Fuel/Power Source Diesel
Fuel Tank (Litres) 77.5
Runtime (Hours) @ 100% Load 12.1
Noise Level @ 1m 75% load (dB) 70
Noise Level @ 7m 75% load (dB) 65
Hyundai Diesel Engine Model HY490
Power Output (kw) 21
Displacement (CC) 2500
No. of Cylinders 4
Displacement (Litres) 2.5
Recommended Oil Type SAE 15W40
Oil Capacity (Litres) 6.2
Oil Filter Part No. JX0810D1/JX85100C
Aspiration Natural
Fuel Regulation/Governor System Mechanical
Fuel Consumption (100% Load) [Litres] 6.2
Fuel Filter Part No. CX0708
Cooling Water
Alternator Model 184ES
Breakers 3P+N C63A 100mA
Alternator Type Brushless
Voltage Regulation AVR
Air Filter Part No. K1317
Net Weight (kg) 786
Gross Weight (kg) 786
Dimensions L x W x H (mm) 1900 x 900 x 1120
Battery System / Starting (V - Ah) 1 x 12/60
ATS / MTS Compatible Yes
Control Panel ComAp AMF9
Accessories -
Model EAN 700621496229
Warranty 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
Product Type Diesel Generator
Assembly Required? Yes - some assembly may be required
