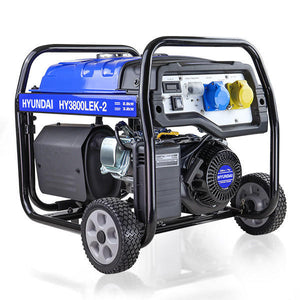

Hyundai 3.2kW / 4kVa* Electric Start Site Petrol Generator | HY3800LEK-2

Orders to be received within 1 - 5 working days. There may be a slight delay in courier tracking becoming available. Postcode exclusions apply.

4 months at 0% interest, Click for more info

£445.82 ex. VAT
£534.99 inc. VAT

Orders to be received within 1 - 5 working days. There may be a slight delay in courier tracking becoming available. Postcode exclusions apply.

4 months at 0% interest, Click for more info

Orders to be received within 1 - 5 working days. There may be a slight delay in courier tracking becoming available.
Be the first to review this product


Powerful Petrol Generator

The HY3800LEK-2 is a powerful yet easily portable petrol open-frame generator from Hyundai, powered by a highly economical 210cc / 7hp single-cylinder 4-stroke engine that is able to produce 3.2kW / 4kVA.

Built for the most demanding of jobs, the HY3800LEK-2 is an extremely reliable workhorse of a generator, with its single-cylinder 4-stroke OHV air-cooled engine generating a maximum power of 3.2kW.

Portable Generator

Despite weighing 57kg, the HY3800LEK-2 has a rugged open frame and is extremely easy to move around thanks to its built-in wheel kit and folding handles.

The integrated wheel kit makes moving this machine very easy, allowing you to easily set it up exactly where it's needed on your site or on your business or residential premises.

Quiet Site Generator

Using the latest low-noise engine technology, and an improved muffler design, the HY3800LEK-2 produces only 65 dBA @ 7m to minimise any distruptions or disturbances to your family, employees or neighbours.

Equipped with a Hyundai copper-wound AVR alternator to keep the voltage output smooth (within +/- 3% of 230V), the HY3800LEK-2 is suitable for powering sensitive electronic equipment, such as televisions, PCs and laptops, in your home or business. This alternator is also heavy-duty enough to easily handle the harsh demands of power tools and building site equipment.

This powerful genset is fitted with 1x 230v 16A & 1x 115v 16A sockets to ensure you always have plenty of space to power whatever is needed.

Generator Features

The onboard digital display meter displays hours run, the output voltage and frequency, making it easy to know when a service on the generator is due, ensuring generator longevity.

This petrol generator's sockets are placed on the end facing the control panel to minimise any potential damage when wheeling this portable generator through narrow gaps and doorways.

Electric Start Generator

The easy electric key-start function makes starting this generator easier than ever before. There is also a backup recoil start system to ensure you are never left without power, although the generator recharges its own battery whilst in use to make sure your electric start system is always ready to go.

Low Maintenance and Easy To Use

With low service and maintenance requirements, the HY3800LEK-2 is incredibly easy to use and has full Hyundai UK parts back up. It also features a low oil alert which will shut down the engine automatically if the oil level drops to minimise any damage to the engine, as well as overload protection which will cut off power if it exceeds the maximum energy capacity.

This generator is ideal for site use, commercial use, trade use or even for home or garage use. Note that petrol generators must never be used inside due to risk of carbon monoxide poisioning.

Petrol-Powered Genset

As this generator is petrol-powered, please note that when storing your generator for a long period of time, we recommend you either run the engine dry of fuel, drain any leftover fuel or use a fuel additive to prevent the petrol from ‘going off’ whilst sat in the generator. Modern unleaded petrol, when left for long periods can congeal and clog the carburettor which can cause problems starting your generator in the future.

3 Year Warranty

This 4kVA diesel generator comes with a 3 year Hyundai domestic warranty* / 1 year commercial warranty* (terms apply) with full UK parts and service backup for added peace of mind.

Generator kVA Ratings

All of our generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 - therefore the 'assumed' kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.

Specifications
Model HY3800LEK-2
Start Method Electric Start/Recoil
Maximum Output kVA 4
Maximum Output (kW) 3.2
Continuous Output (kW) 2.8
Continuous Output (kVA) -
Run Time @ 50% load (hours) 13.5
Fuel Consumption @ 100% load (L/Hr) 1.6
Fuel Consumption @ 50% load (L/Hr) 1.1
Voltage Regulation Method AVR
Phase Single Phase
Voltage 115V/230V
Alternator Type -
Connection Method(s) 230v/16A, 115v/16A
Rated Speed (RPM) 3000
Frequency (Hz) 50
Max/Continuous Current (Amps) 24.3A/12.2A
Engine Model AP170F
Engine Type 4-Stroke Air-Cooled
Engine Size (cc) 210
Engine Power (hp) 7
Fuel Petrol
Fuel Capacity (L) 15
Engine Oil Type SAE15W40
Engine Oil Capacity (ml) 600
No. of Cylinders 1
Features Overload Protection
Casing Open Frame
Noise Level db (A) @ 7m 70
Noise Level db (A) 96
Wheel Kit? Yes
Gross Weight (kg) 54.65
Net Weight (kg) 52.6
Fully Assembled Dimensions (H x W x L) (mm) 555 x 580 x 595
Package Dimensions (H x W x L) (mm) 610 x 480 x 530
Fuel Type Unleaded Petrol
Product Type Petrol Generator
Home Use Warranty (years) 3
Commercial Warranty (years) 1
Model EAN 600231978057
In The Box HY3800LEK-2 Generator, Wheel Kit With Puncture Proof Tyres, 2x 16A Plugs, Manual, Tool Kit
