Hyundai 750W / 1HP 24L Oil Free Low Noise Portable Air Compressor 5.2CFM 118psi Direct Drive | HY7524X
Hyundai 750W / 1HP 24L Oil Free Low Noise Portable Air Compressor 5.2CFM 118psi Direct Drive | HY7524X
Product Details
Description

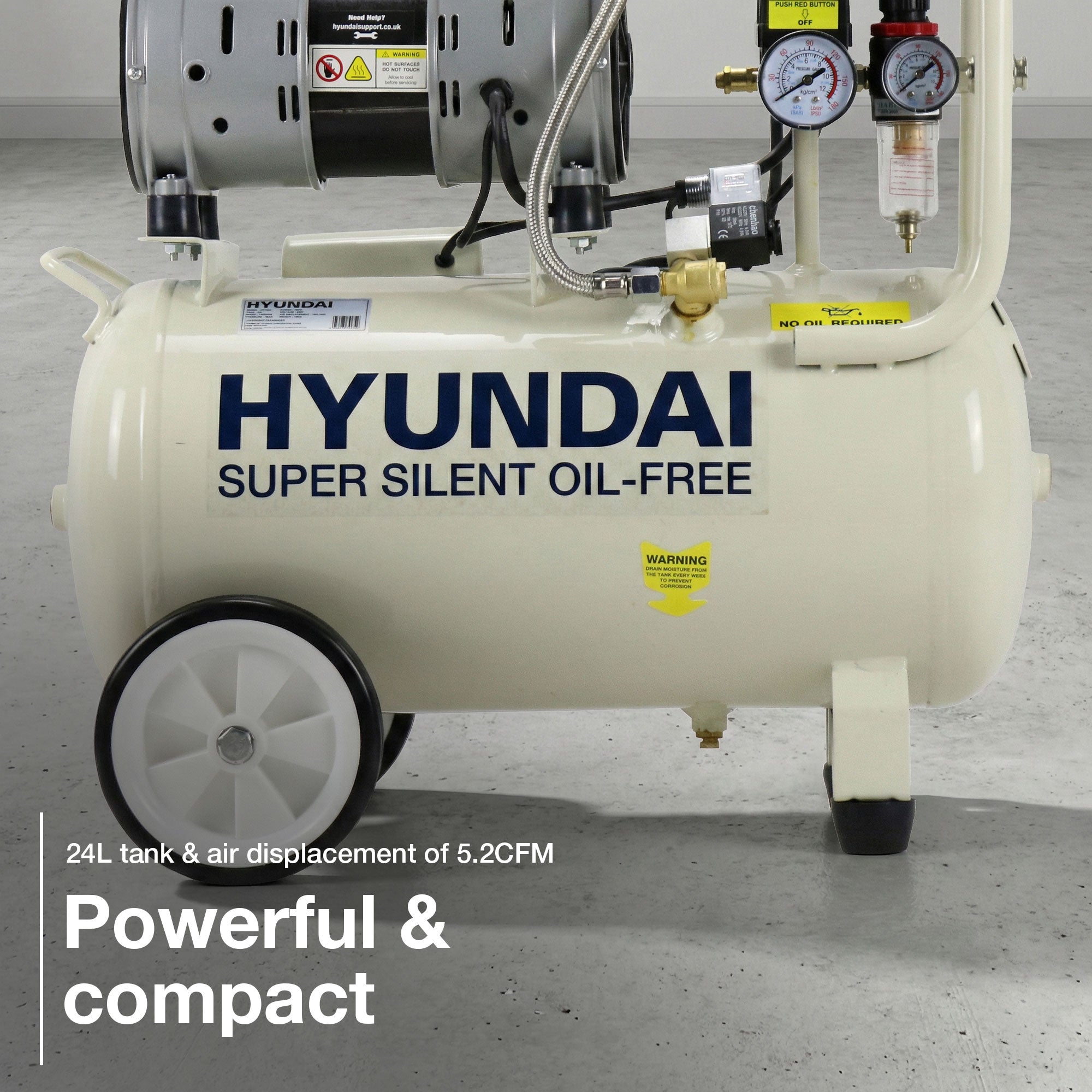

Powerful And Compact Air Compressor

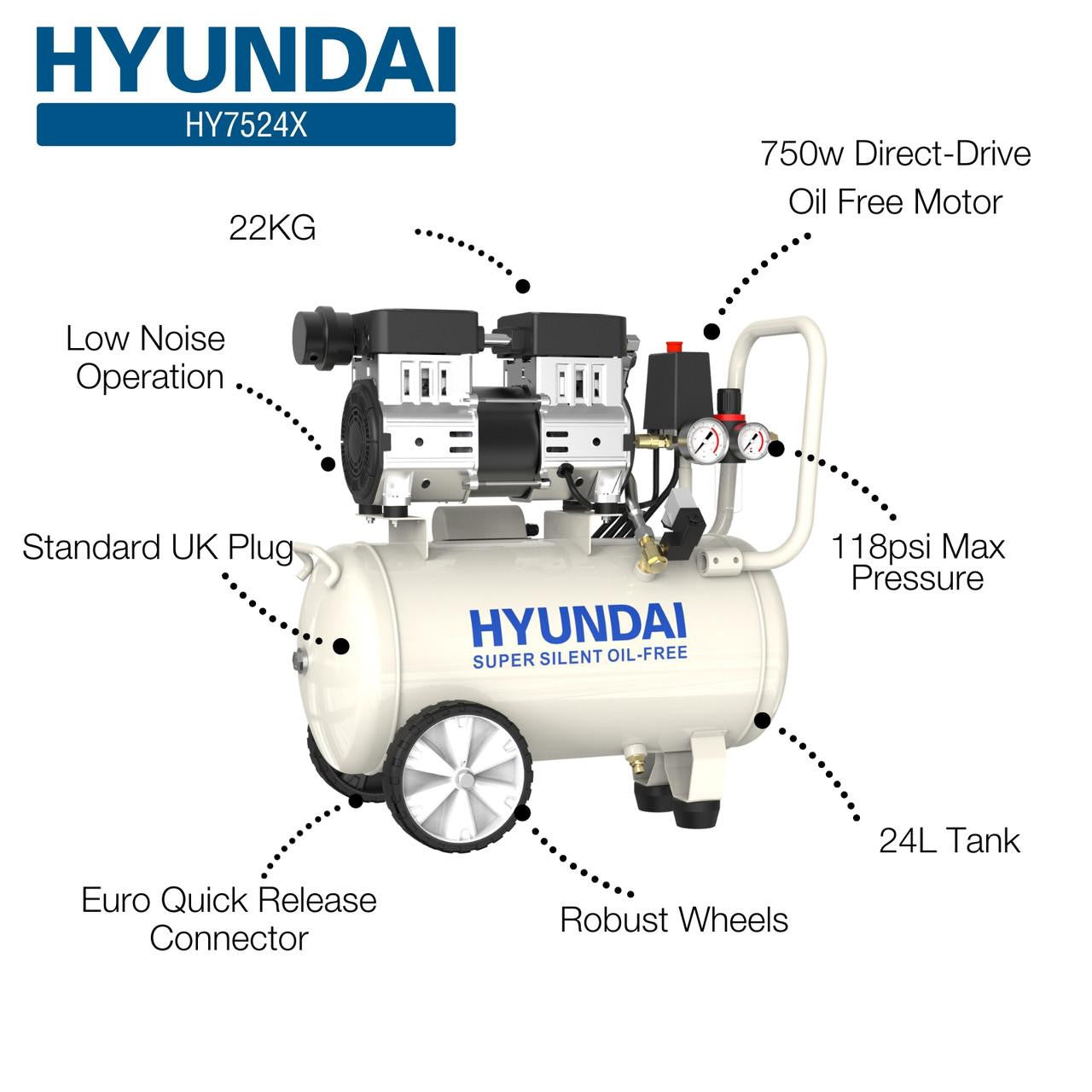

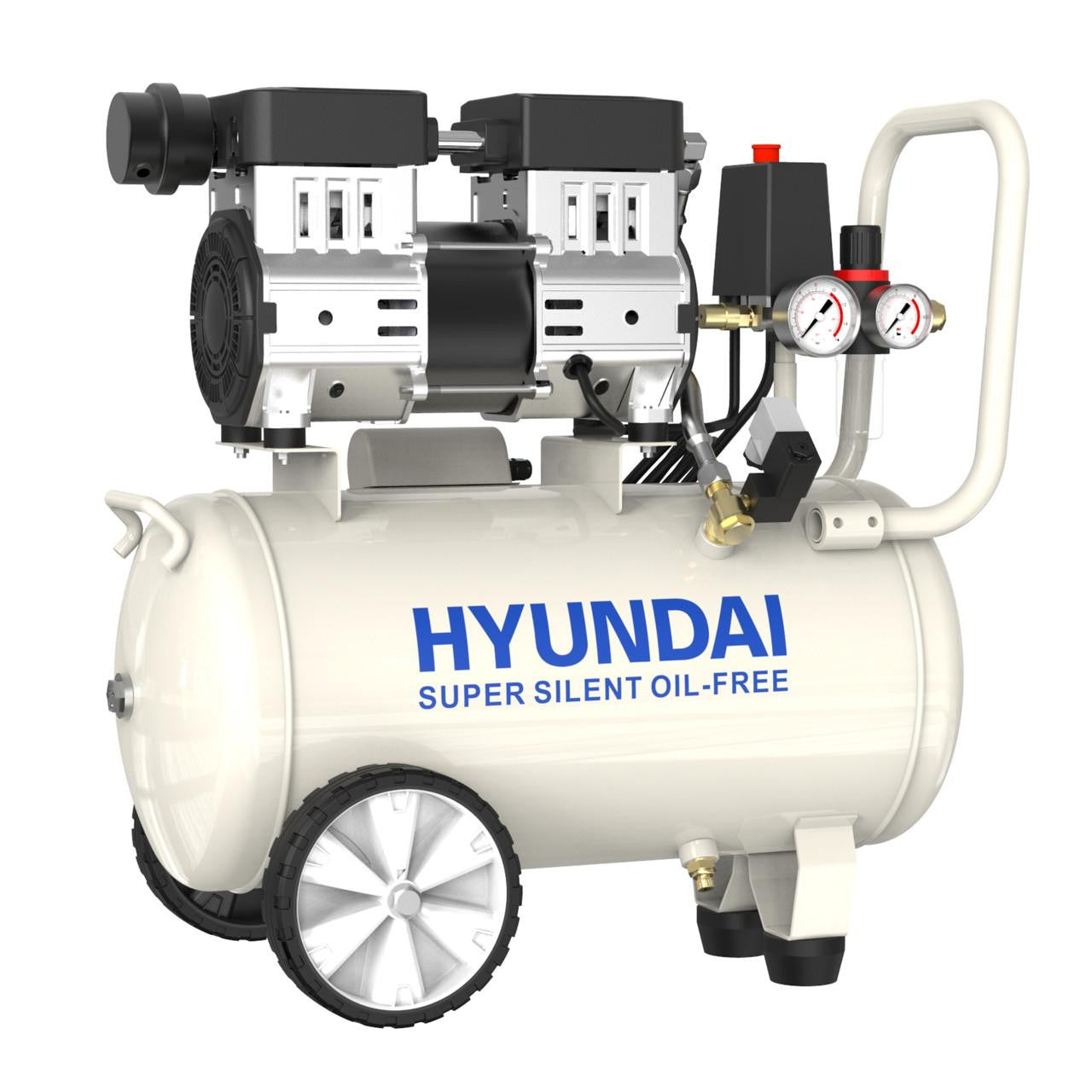

The HY7524X is a powerful yet compact 750w direct-drive oil-free low noise air compressor from Hyundai.
Suitable For Various Jobs
Designed for DIY and trade applications the HY7524X silenced oil-free air compressor is ideal for spray-painting, blowing away dirt and dust, nailing, inflating tyres or operating air tools.

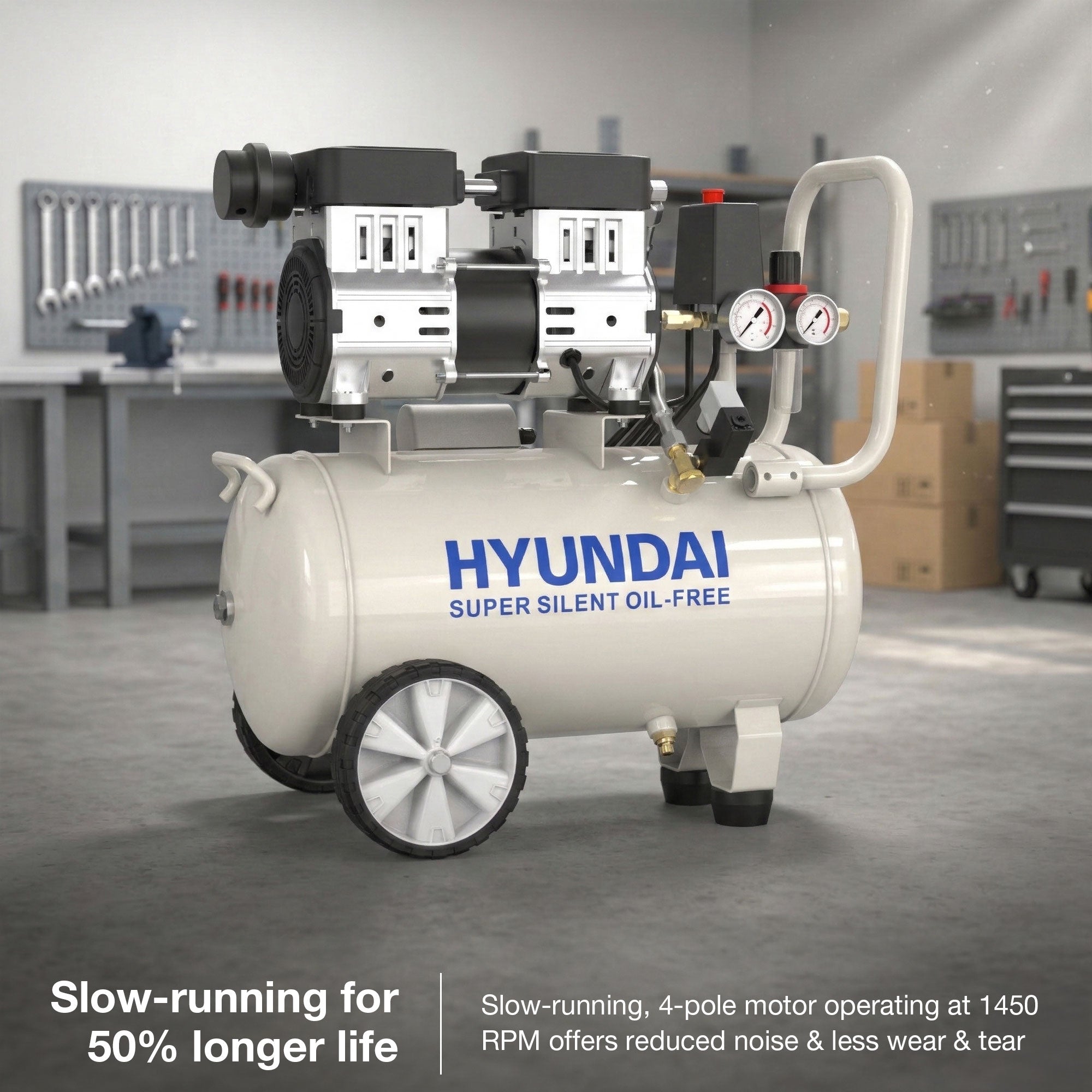

Slow-running for 50% longer life
A slow-running, 4-pole motor operating at 1450 RPM, like the Hyundai HY7524X air compressor, offers reduced noise and results in less wear and tear on internal components, which can extend the compressor's lifespan. Running at a slower speed typically consumes less energy, making it a more energy-efficient solution for users and potentially lowering electricity costs over the long term.

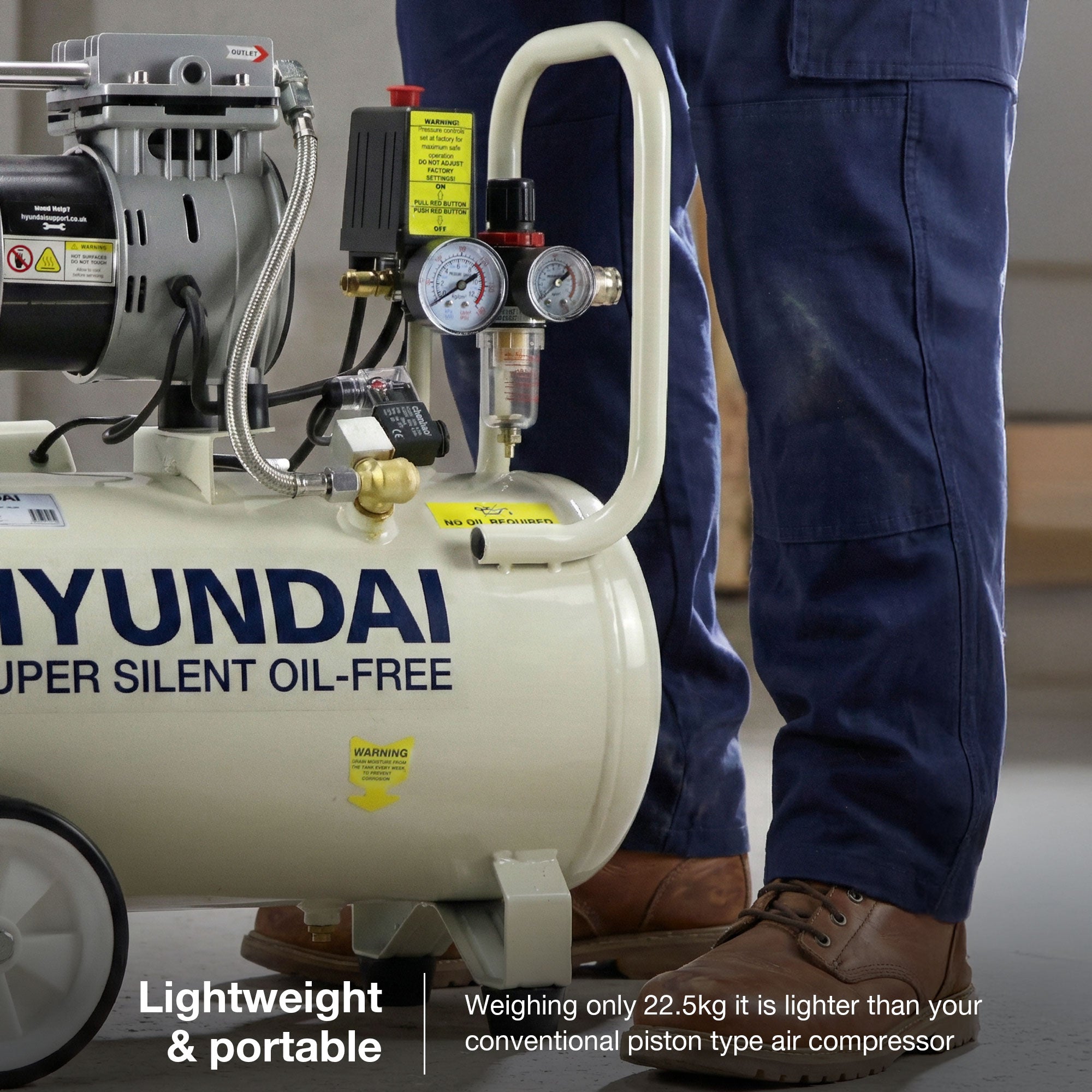

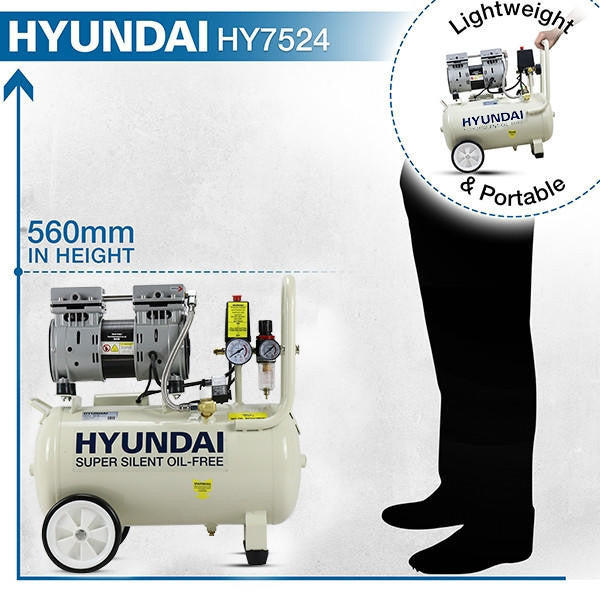

Lightweight Compressor
Weighing only 22kg the HY7524X whisper compressor is lighter than your conventional piston type air compressor and is completely oil-free, so there is no risk of oil contamination in the air supply.

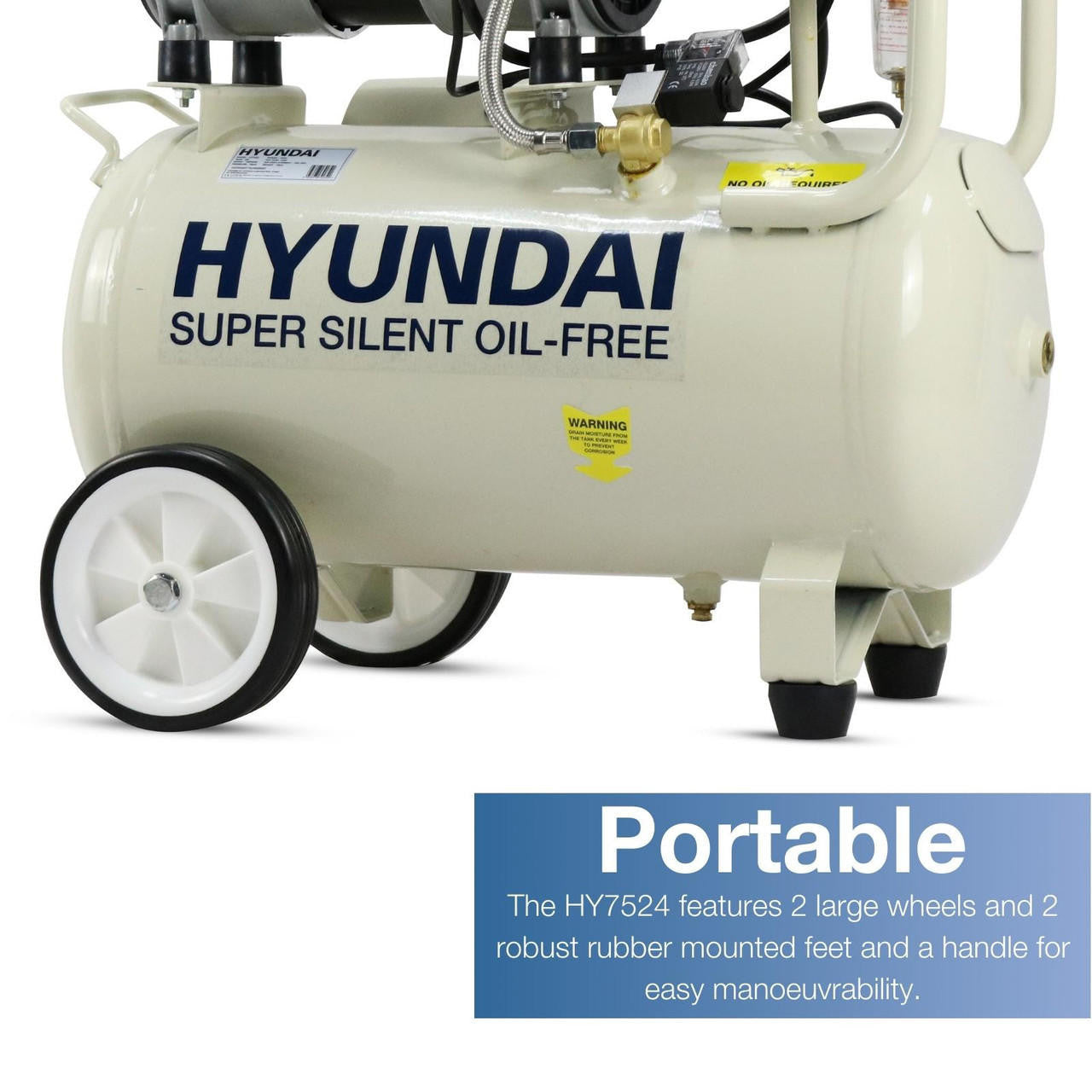

Portable Air Compressor
The HY7524 features 2 large wheels and 2 robust rubber mounted feet and a handle for easy manoeuvrability.
Powered By Standard Mains Supply

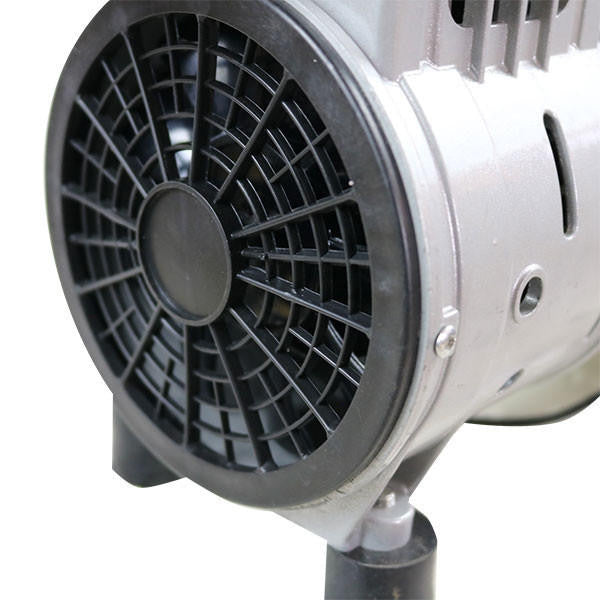

Powered by a 750w motor directly connected to the oil-less pump mounted on anti-vibration rubber mounts, makes it is ideal for the home workshop or garage use where conventional residential power sockets are available.

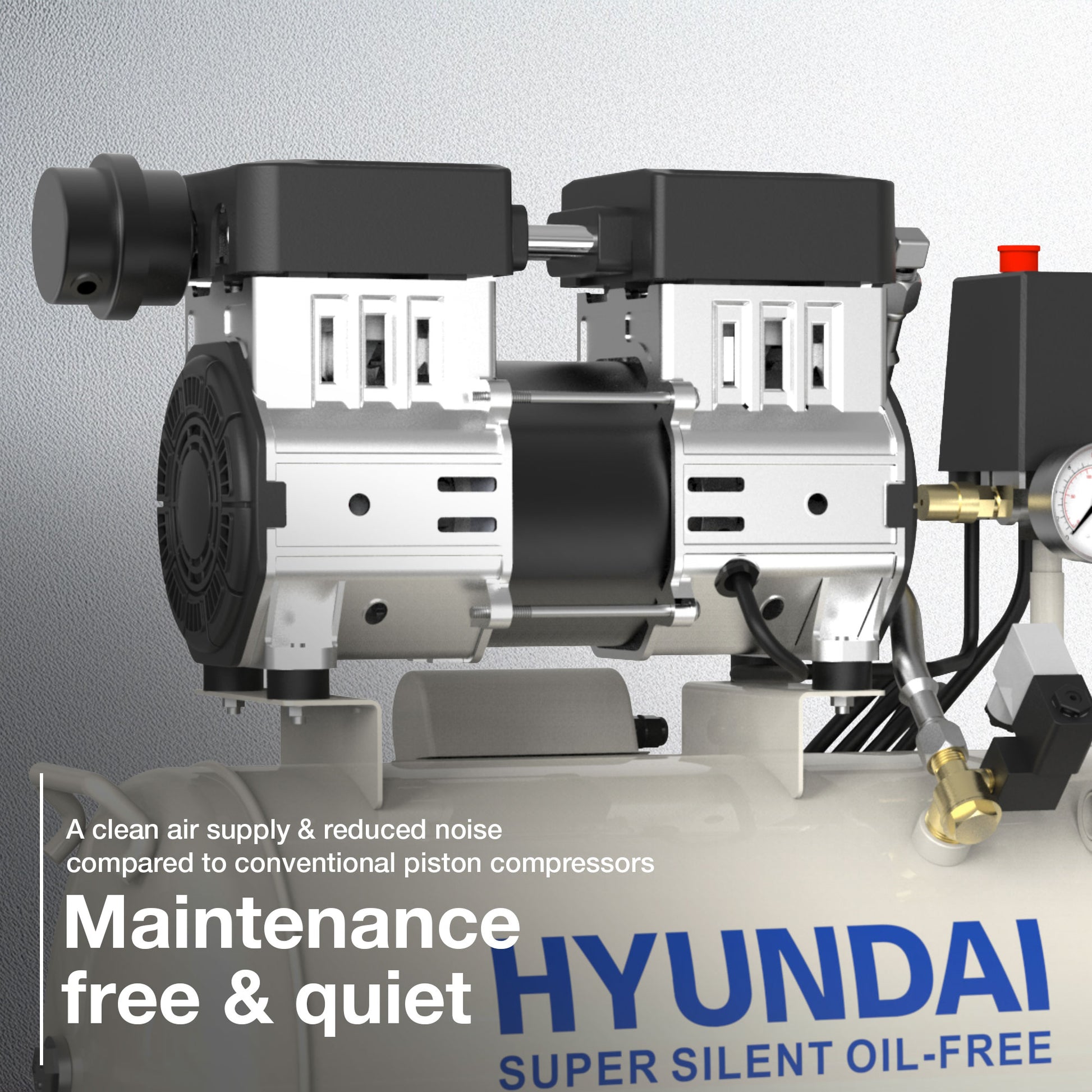

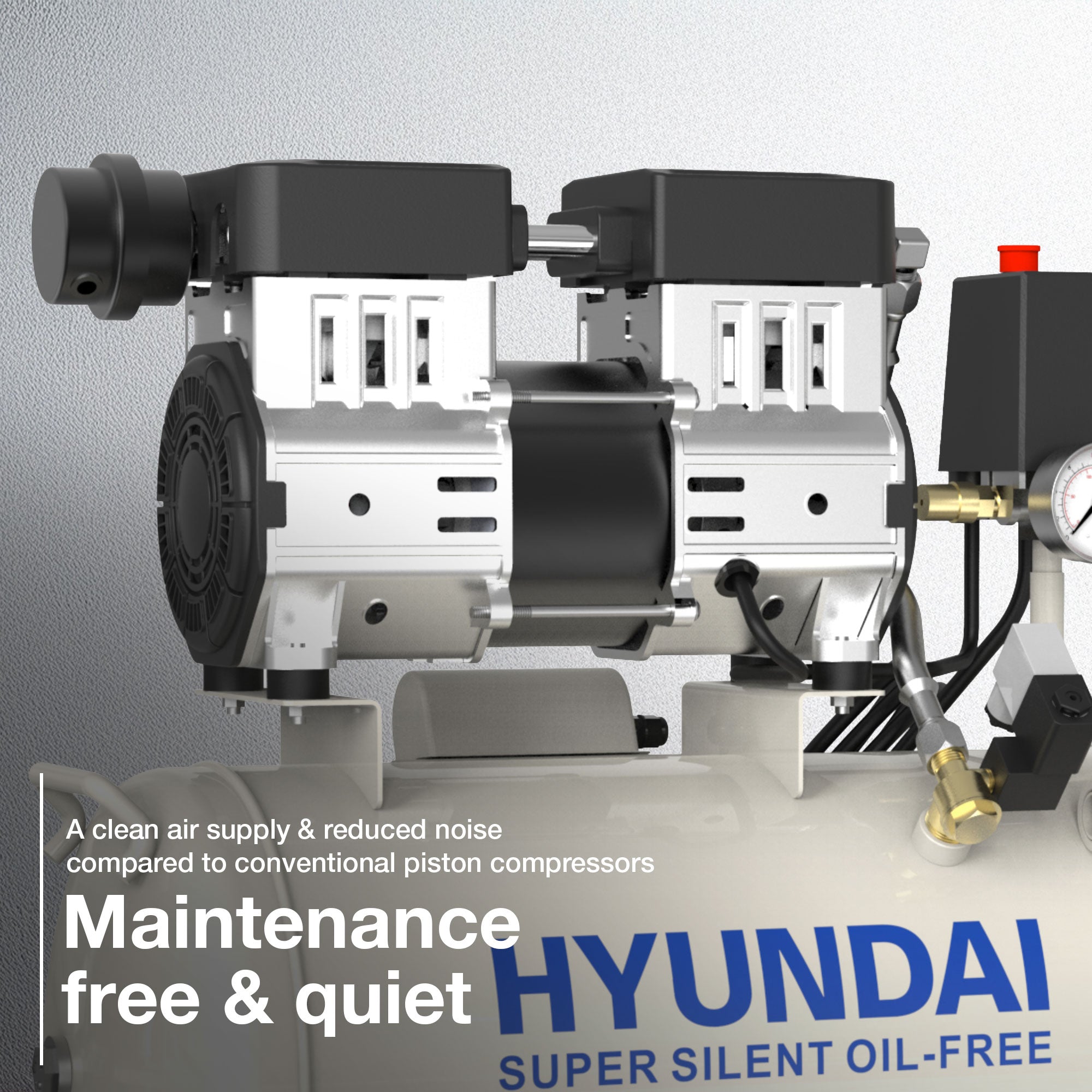

Maintenance Free
This maintenance-free compressor uses an oil-free diaphragm pump to produce a clean air supply and considerably reduce noise compared to conventional piston compressors.
24L Tank
With a 24-litre tank capacity, this compressor provides an air displacement of 5.2CFM/ 150 litres per minute and a discharge pressure of 7 bar/ 100 psi.

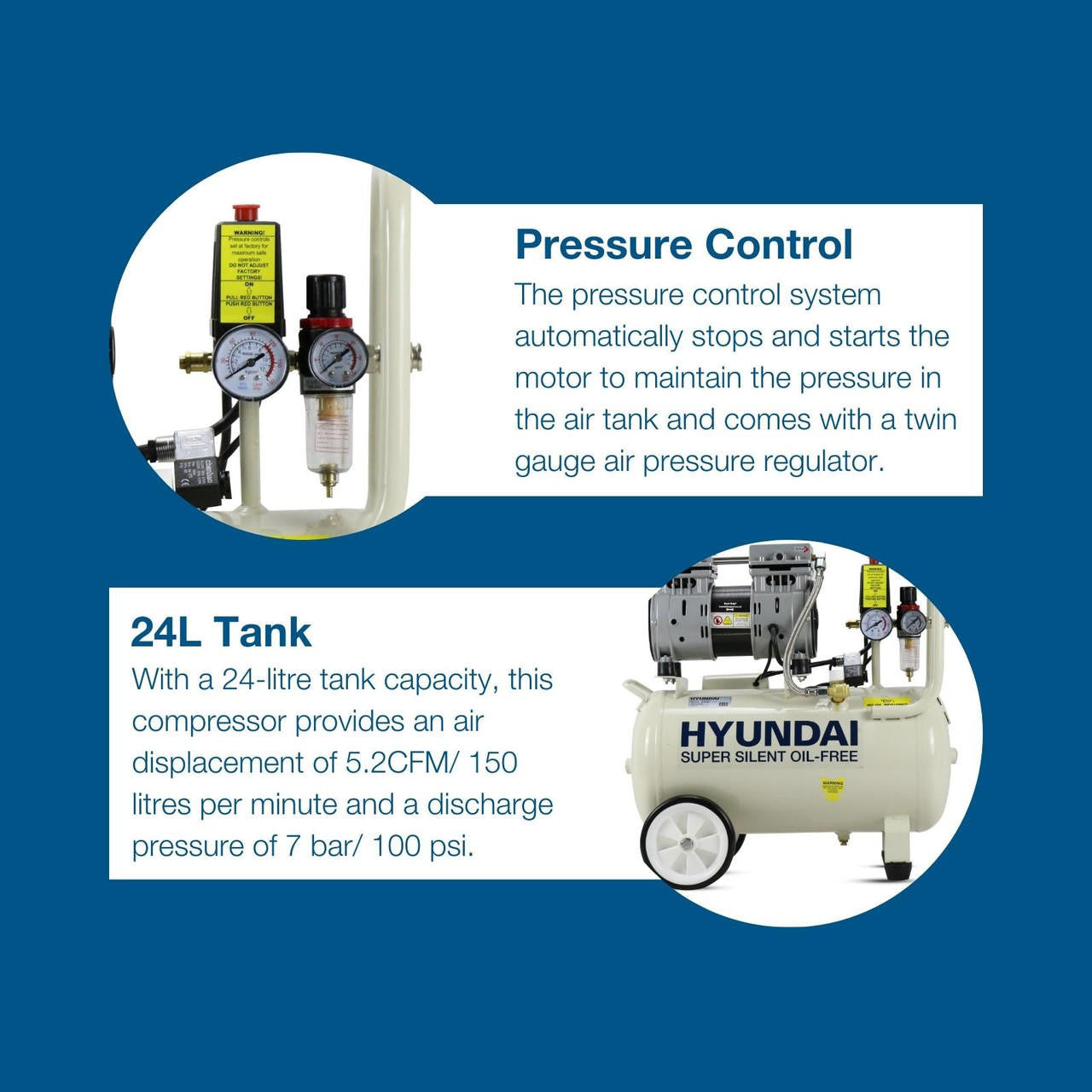

Pressure Control System
The pressure control system automatically stops and starts the motor to maintain the pressure in the air tank and comes with a twin gauge air pressure regulator.

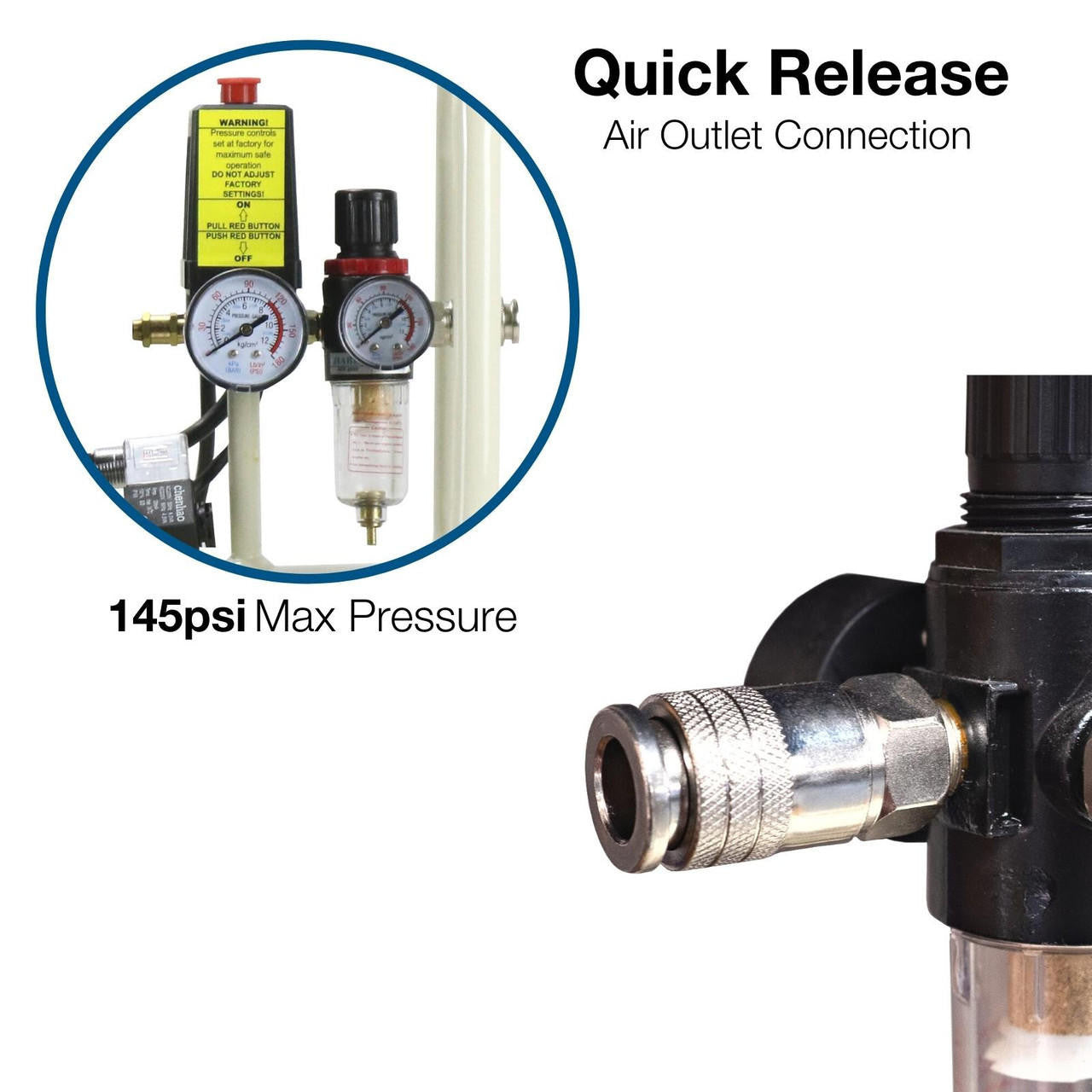

Euro Quick Release Connectors

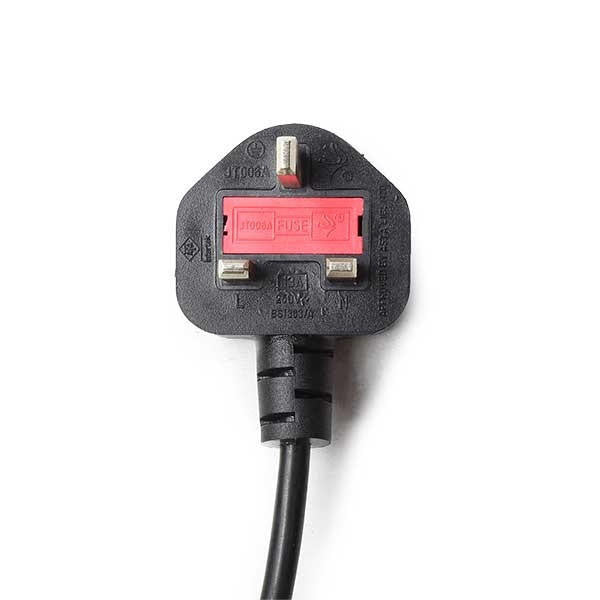

Fitted with Euro quick release connectors this compressor is fitted with a standard 13A UK Plug.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. Air and moisture should always be released using the drain valve located on the bottom of the tank.
Warranty
Covered by Hyundai 2 year warranty.
Specifications
| Air Displacement (CFM) | 5.28 |
| Air Displacement (L/min) | 150 |
| Air Flow FAD (CFM) | 2.65 |
| Air Flow FAD (L/min) | 75 |
| Air Outlet Connection | Euro Quick Release |
| Cable Length (m) | 1.5 |
| Commercial Warranty (years) | 1 |
| Discharge Pressure (psi/bar) | 100/7 |
| Drive Type | Direct Drive |
| Duty Cycle | - |
| EAN | 5056275722722 |
| Fuel / Power Source | Electric |
| Fully Assembled Dimensions (H x W x L) (mm) | 560 x 295 x 570 |
| Gross Weight (kg) | 24.5 |
| In The Box | HY7524 Electric Air Compressor User Manual |
| Lubrication Type | Oil Free |
| Max Pressure (psi/bar) | 100/7 |
| Model | HY7524X |
| Motor Power kW/hp | 0.75/1 |
| Net Weight (kg) | 22.5 |
| Noise Level @ 7m (dB) | 60 |
| Packaged Dimensions (H x W x L) (mm) | 630 x 290 x 600 |
| Product Type | Air Compressor |
| Pump (RPM) | 1450 |
| Rated Power (w) | 750 |
| Speed (RPM) | 1040 |
| Start Method | Switch |
| Stationary / Wheeled | Wheeled |
| Tank Capacity (L) | 24 |
| Tank Material | Steel |
| Voltage | 230 |
| Warranty (years) | 2 |
What's in the Box
- HY7524X Electric Air Compressor
- User Manual
