Heavy-Duty

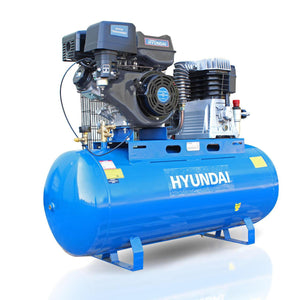

The HY140200PES is a powerful 14hp twin cylinder cast iron belt drive air compressor from Hyundai. Designed for professional workshops, mobile tyre fitting vehicles and trade applications the HY140200PES air compressor is ideal for powering heavy duty commercial vehicle 1” drive impact guns, inflating super single commercial vehicle tyres and general heavy mobile use.
4 Robust Feet
Weighing 145kg the HY140200PES features 4 robust feet that can also be mounted to a vehicle for maximum transportability.
Built To Last
The twin-cylinder slow running pump with aluminium cylinder head and cast iron liners for improved resistance to wear.
Electric Key Start
Powered by the electric key start 14hp IC420 Hyundai petrol 4-stroke engine makes the HY140200PES petrol air compressor ideal for mobile commercial tyre fitting.
Long Stress-Free Lifespan
The slow-running twin cylinder pump is belt driven and runs at 1050rpm, to give it a long stress free lifespan. Maximum pressure is automatically controlled by the safety valve which reduces engine speed to tick over when maximum pressure of 10bar is reached.
Large 200L Tank
The large 200 litre tank capacity provides a constant supply of air for tools that need a high flow rate up to 800 litres per minute. Twin air outlets for increased versatility allow two air-lines / tools to be connected at the same time. For high flow rates, the air hose can be connected directly to the air tank. The pressure regulator with twin gauges allows for controlled adjustable air pressure.
Ideal For Professional Use
This air compressor provides a fantastic combination of performance and durability ideal for professional applications in any setting.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
In the Box:
- HY140200PES
- 4 Rubber feet
- User manual
Please note: this compressor is not supplied with a battery
Warranty
Covered by Hyundai 2 year standard warranty / 1 year commercial warranty
Specifications
| Model | HY140200PES |
|---|---|
| Start Method | Electric or Recoil |
| Fuel/Power Source | Petrol |
| Drive Type | Belt Drive |
| Stationary / Wheeled | Stationary |
| Tank Capacity (L) | 200 |
| Tank Material | Rolled Steel |
| Cut-In Pressure (psi/bar) | 116/8 |
| Cut-Out Pressure (psi/bar) | 116/8 |
| Discharge Pressure (psi/bar) | 116/8 |
| Max Pressure (psi/bar) | 145/10 |
| Air Flow FAD (L/min) | 600 |
| Air Flow FAD (CFM) | 21 |
| Air Displacement (L/min) | 800 |
| Air Displacement (CFM) | 29 |
| Air Outlet Connection | 1/2" BSP/2 x Euro Quick Release |
| Outlet Pressure Regulation Type | Adjustable |
| Phase | - |
| Engine Size (cc) | 420 |
| Engine Model | IC420E |
| Engine Type | Twin Cylinder |
| Fuel Capacity (L) | 6.5 |
| Engine Oil | 15W40 |
| Engine Oil Capacity (ml) | 1100 |
| Rated Power (w) | 9100 |
| Motor Power kW/hp | 9.1/13 |
| Pump (RPM) | 1050 |
| Speed (RPM) | 3000 |
| Frequency (Hz) | - |
| Noise Level @ 7m (dB) | 91 |
| Gross Weight (kg) | 148 |
| Net Weight (kg) | 138 |
| Fully Assembled Dimensions (H x W x L) (mm) | 980 x 500 x 1310 |
| Packaged Dimensions (H x W x L) (mm) | 1020 x 520 x 1360 |
| Product Type | Air Compressor |
| Warranty (years) | 2 |
| Commercial Warranty (years) | 1 |
| Model EAN | 5056275722760 |
| In The Box | HY140200PES, 4 Rubber Feet & User Manual |
| Feature 1 | Powerful Engine: Powered by the Hyundai IC420 14hp electric start IC420 petrol engine. |
| Feature 2 | Twin cylinder belt drive: slow running pump provides an air displacement of 29CFM / 800 litres per minute. |
| Feature 3 | Large Tank: Large 200 litre tank capacity. |
| Feature 4 | Quick release: Fitted with Euro quick release connectors. |
| Feature 5 | Ideal for professional mobile workshop and commercial garage use. |
| Feature 6 | Extensive Warranty: Covered by Hyundai 2 year warranty/ 1 year commerical warranty |
| Feature 7 | Full spares available: to maintain your air compressor for years to come. |
