Hyundai 14hp 200L Petrol Belt Driven Air Compressor 29CFM 145psi | HY140200PES
Hyundai 14hp 200L Petrol Belt Driven Air Compressor 29CFM 145psi | HY140200PES
Product Details
Description
Heavy-Duty

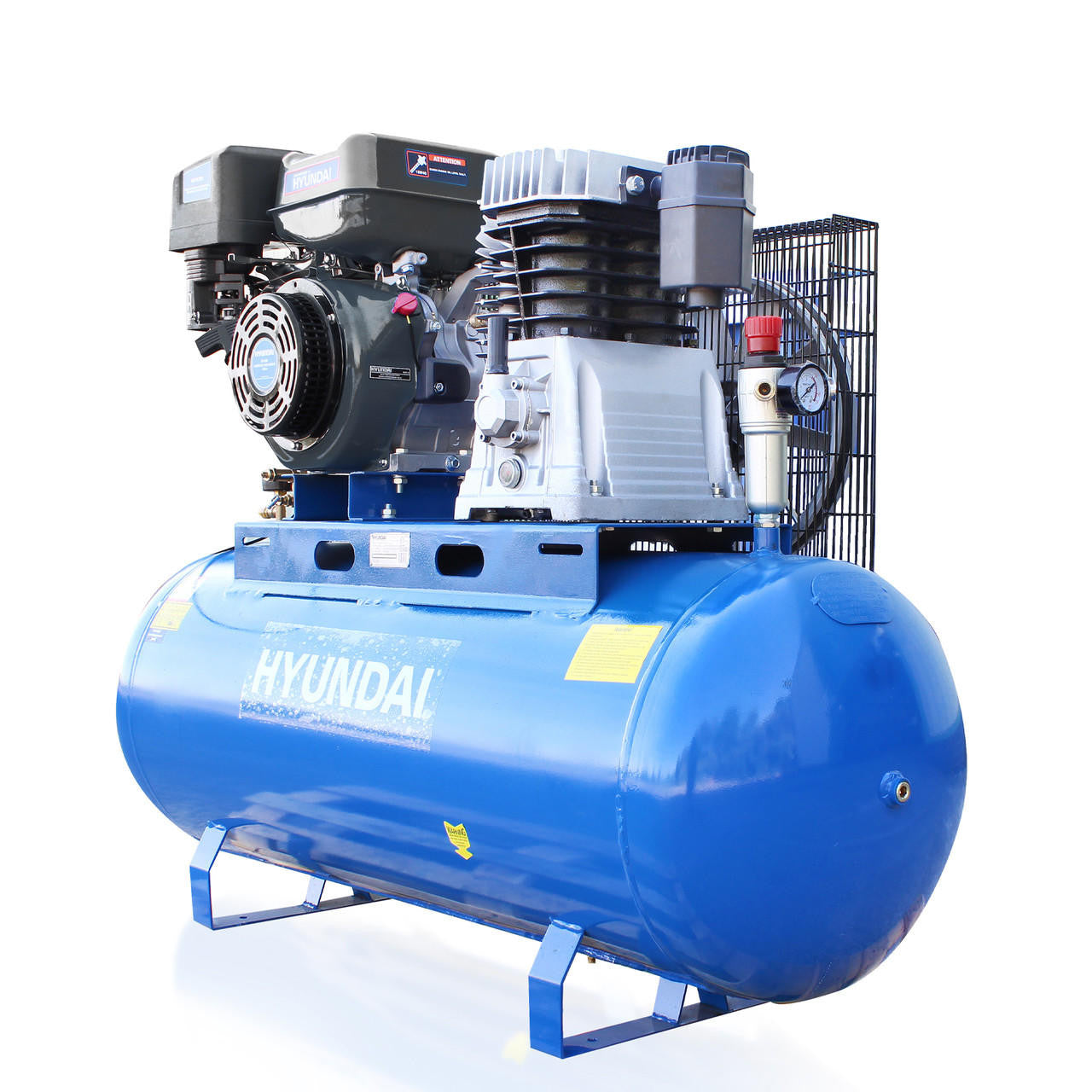

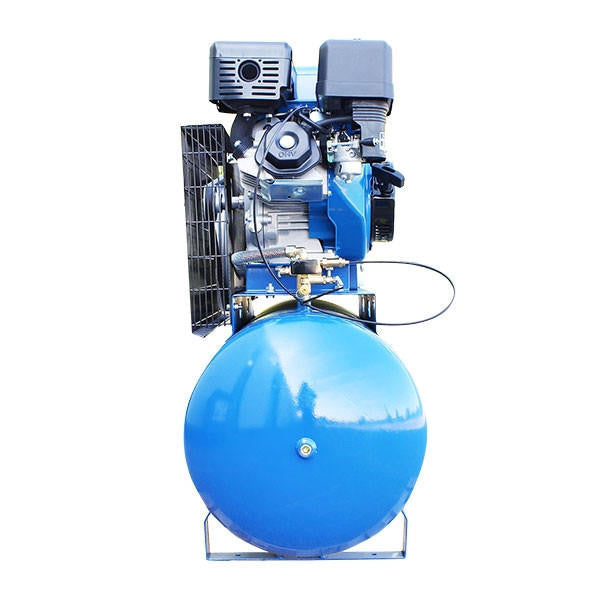

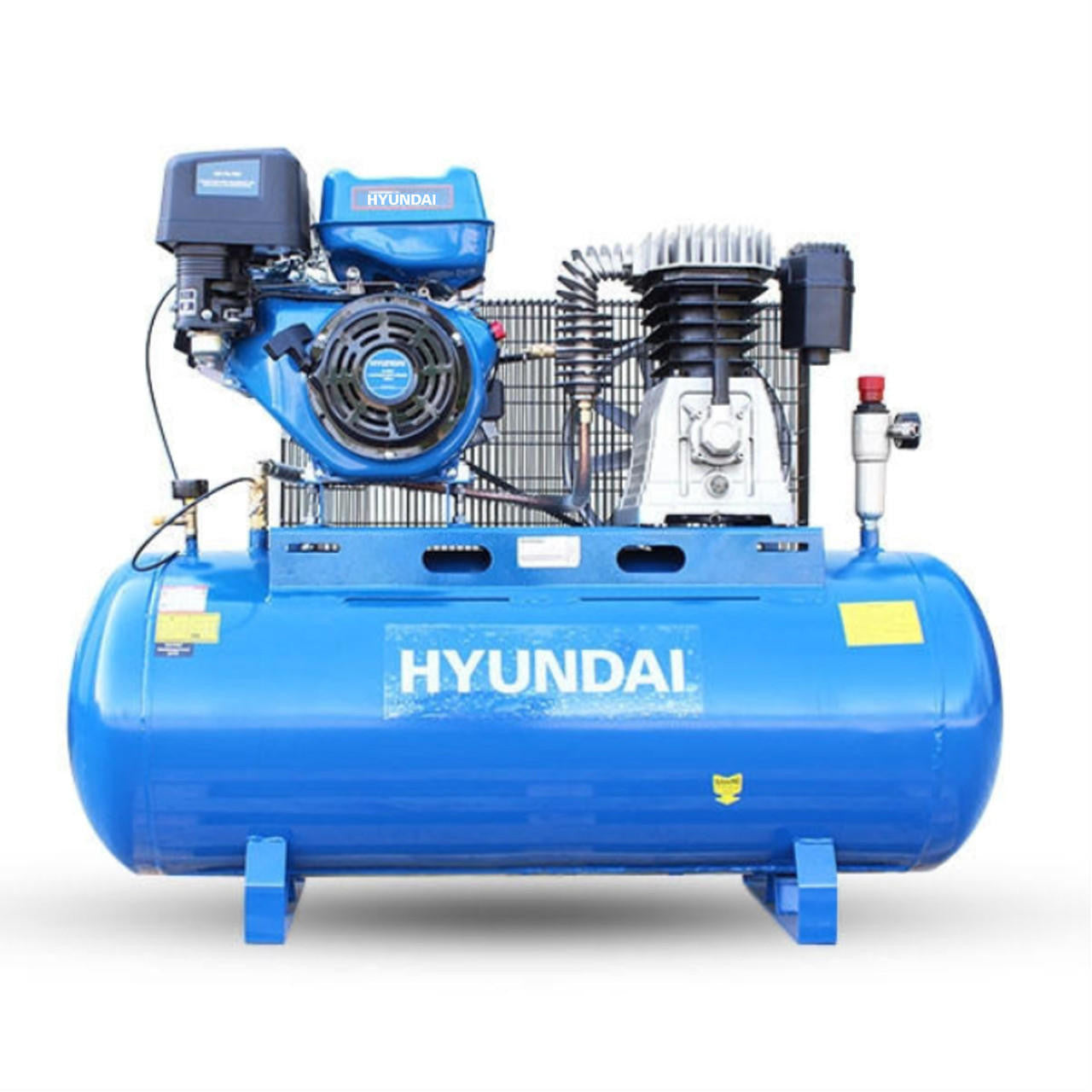

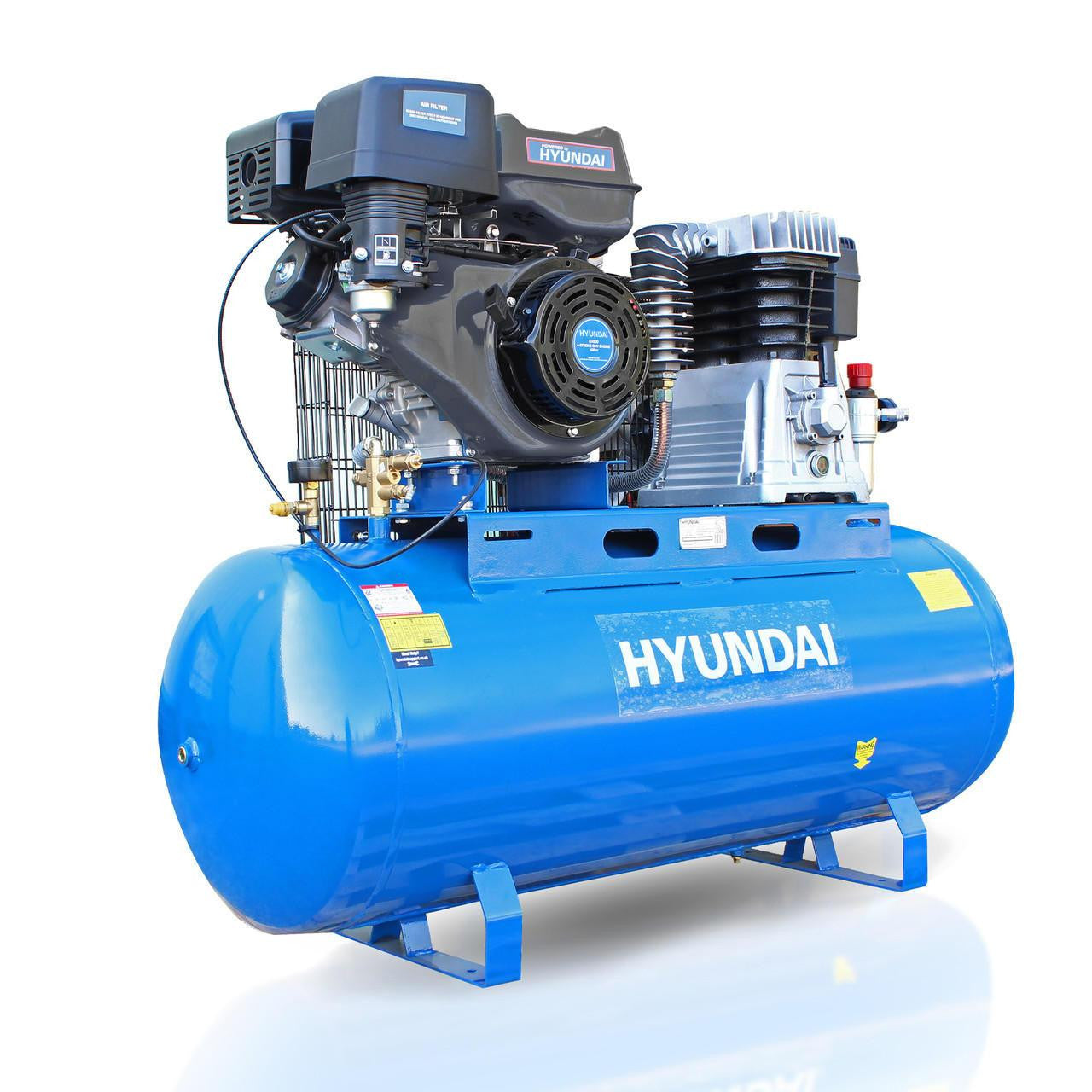

The HY140200PES is a powerful 14hp twin cylinder cast iron belt drive air compressor from Hyundai. Designed for workshops and application such as mobile tyre fitting, the HY140200PES air compressor is ideal for powering heavy duty vehicle 1” drive impact guns, inflating super single vehicle tyres and general heavy mobile use.

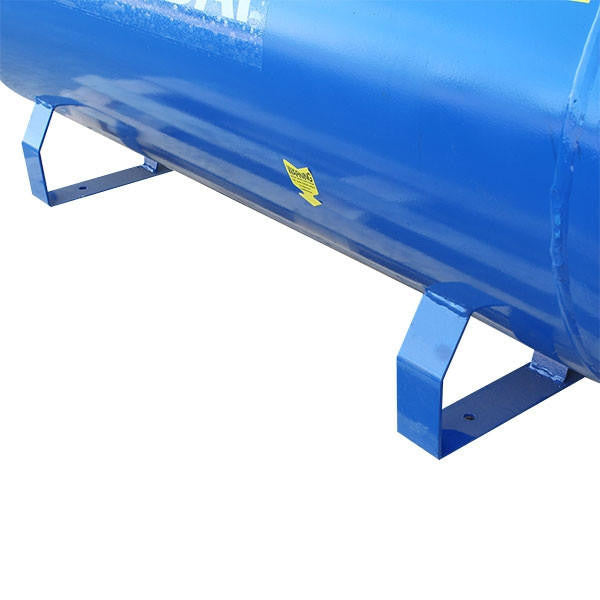

4 Robust Feet
Weighing 145kg the HY140200PES features 4 robust feet that can also be mounted to a vehicle for maximum transportability.
Built To Last
The twin-cylinder slow running pump with aluminium cylinder head and cast iron liners for improved resistance to wear.
Electric Key Start

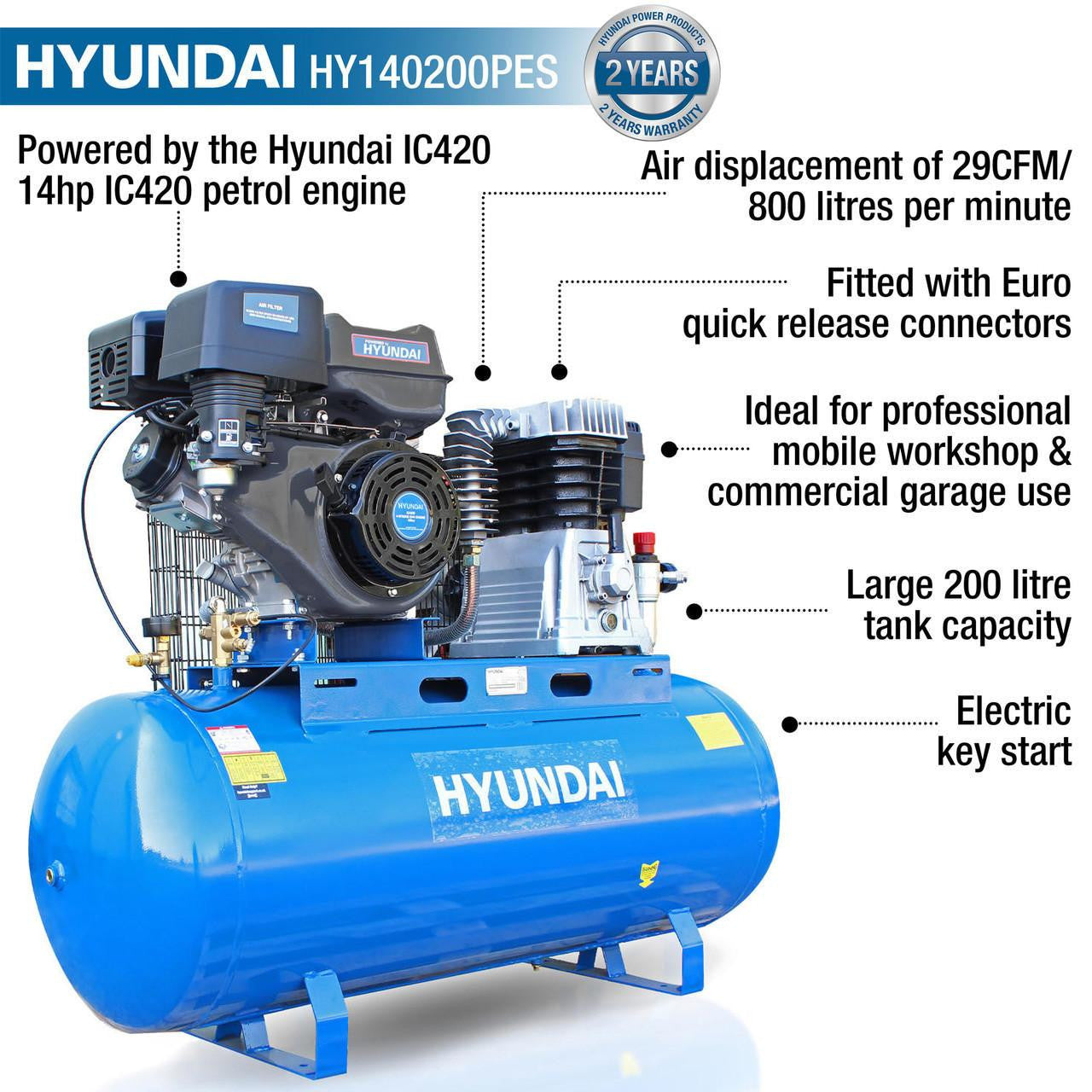

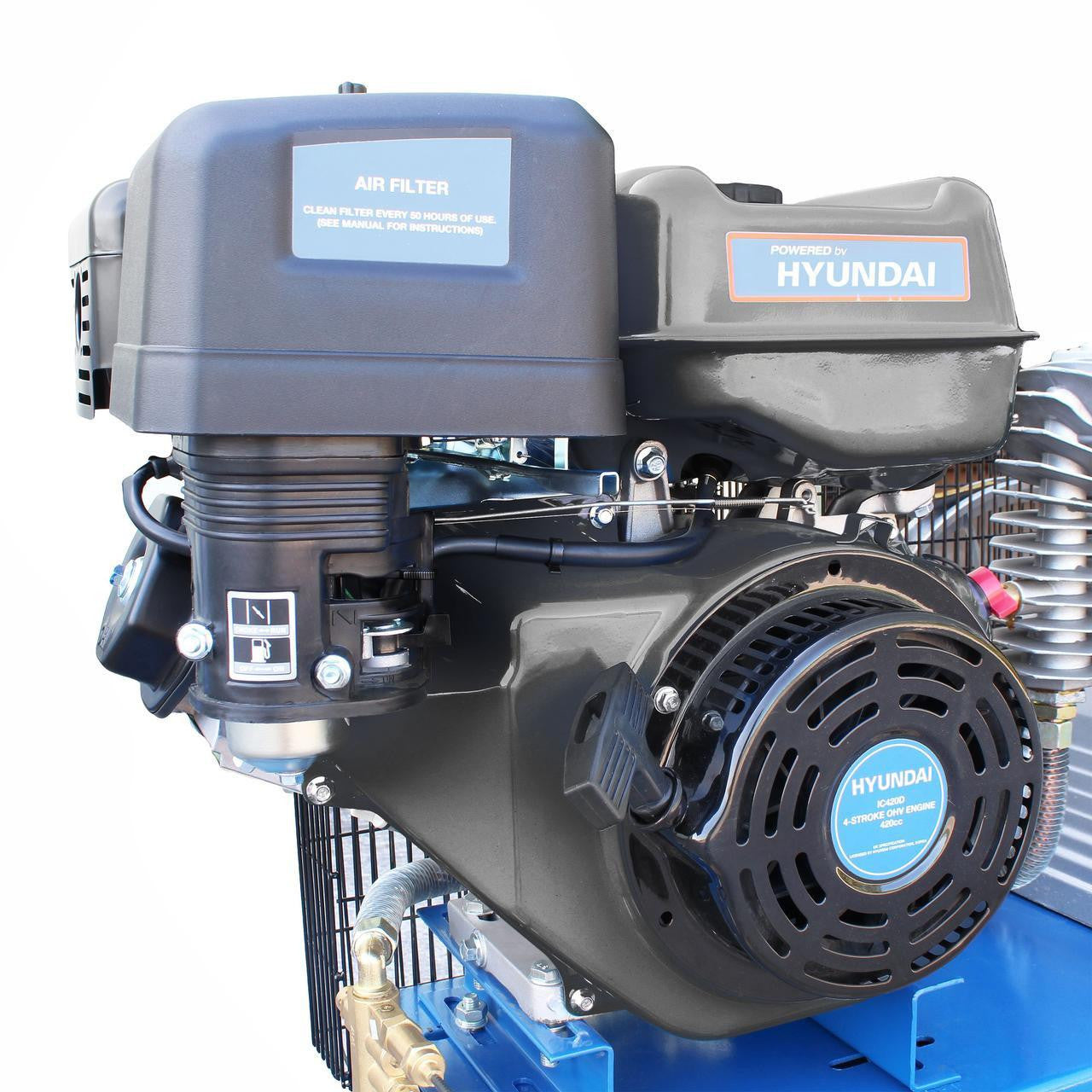

Powered by the electric key start 14hp IC420 Hyundai petrol 4-stroke engine makes the HY140200PES petrol air compressor ideal for mobile commercial tyre fitting.
Long Stress-Free Lifespan
The slow-running twin cylinder pump is belt driven and runs at 1050rpm, to give it a long stress free lifespan. Maximum pressure is automatically controlled by the safety valve which reduces engine speed to tick over when maximum pressure of 10bar is reached.
Large 200L Tank

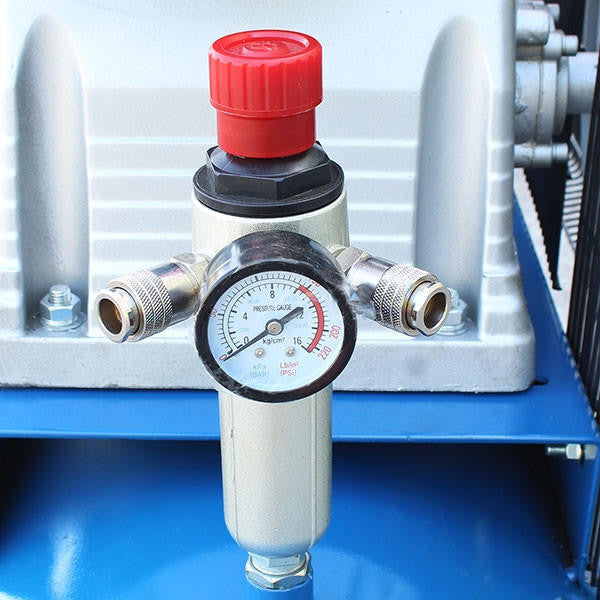

The large 200 litre tank capacity provides a constant supply of air for tools that need a high flow rate up to 800 litres per minute. Twin air outlets for increased versatility allow two air-lines / tools to be connected at the same time. For high flow rates, the air hose can be connected directly to the air tank. The pressure regulator with twin gauges allows for controlled adjustable air pressure.
Ideal For Professional Use
This air compressor provides a fantastic combination of performance and durability ideal for professional applications in any setting.
Compressor Care

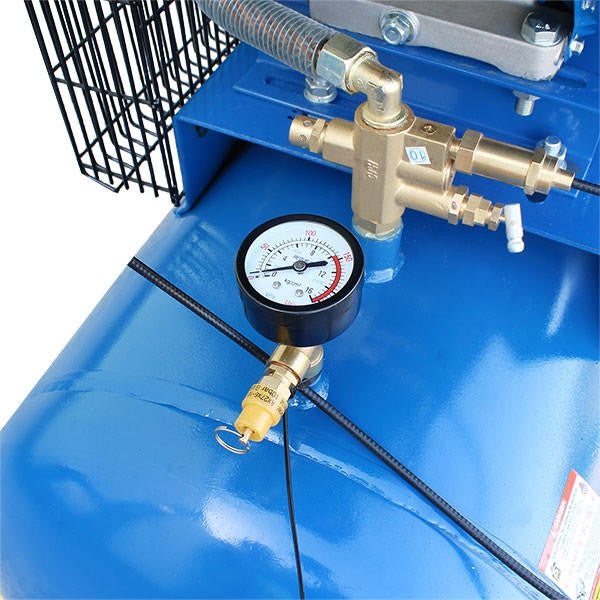

Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
Please note: this compressor is supplied with a 12v lead acid battery
Warranty
Covered by Hyundai 2 year standard warranty
Specifications
| Air Displacement (CFM) | 29 |
| Air Displacement (L/min) | 800 |
| Air Flow FAD (CFM) | 21 |
| Air Flow FAD (L/min) | 600 |
| Air Outlet Connection | 1/2" BSP/2 x Euro Quick Release |
| Commercial Warranty (years) | - |
| Cut-In Pressure (psi/bar) | 116/8 |
| Cut-Out Pressure (psi/bar) | 145/10 |
| Discharge Pressure (psi/bar) | 145/10 |
| Drive Type | Belt Drive |
| EAN | 5056275722760 |
| Engine Model | IC420E |
| Engine Oil | 15W40 |
| Engine Oil Capacity (ml) | 1100 |
| Engine Size (cc) | 420 |
| Engine Type | Single Cylinder 4 Stroke |
| Frequency (Hz) | - |
| Fuel / Power Source | Petrol |
| Fuel Capacity (L) | 6.5 |

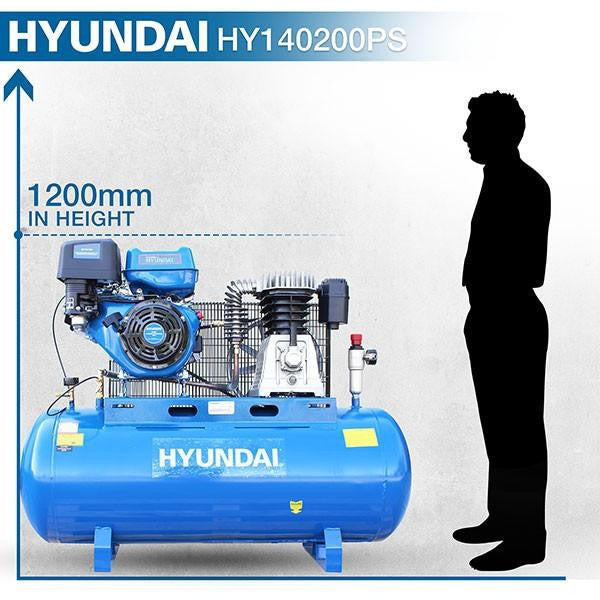

| Fully Assembled Dimensions (H x W x L) (mm) | 980 x 500 x 1310 |
| Gross Weight (kg) | 148 |
| In The Box | HY140200PES, 2 x Euro Quick Release hose, Set of Replacement pump gaskets, 4 Rubber Feet & User Manual |
| Max Pressure (psi/bar) | 145/10 |
| Model | HY140200PES |
| Motor Power kW/hp | 9.1/13 |
| Net Weight (kg) | 138 |
| Noise Level @ 7m (dB) | 91 |
| Outlet Pressure Regulation Type | Adjustable |
| Packaged Dimensions (H x W x L) (mm) | 1020 x 520 x 1360 |
| Phase | - |
| Product Type | Air Compressor |
| Pump (RPM) | 1050 |
| Rated Power (w) | 9100 |
| Speed (RPM) | 3000 |
| Start Method | Electric or Recoil |
| Stationary / Wheeled | Stationary |
| Tank Capacity (L) | 200 |
| Tank Material | Rolled Steel |
| Warranty (years) | 2 |
What's in the Box
- HY140200PES
- 2 x Euro Quick Release Hoses
- Set of Replacement Pump Gaskets
- 4 Rubber feet
- User manual
