Hyundai 10hp 300L Heavy-Duty Industrial Screw Air Compressor, 400v, Quiet Running | HYSC100300
Hyundai 10hp 300L Heavy-Duty Industrial Screw Air Compressor, 400v, Quiet Running | HYSC100300
Product Details
Description

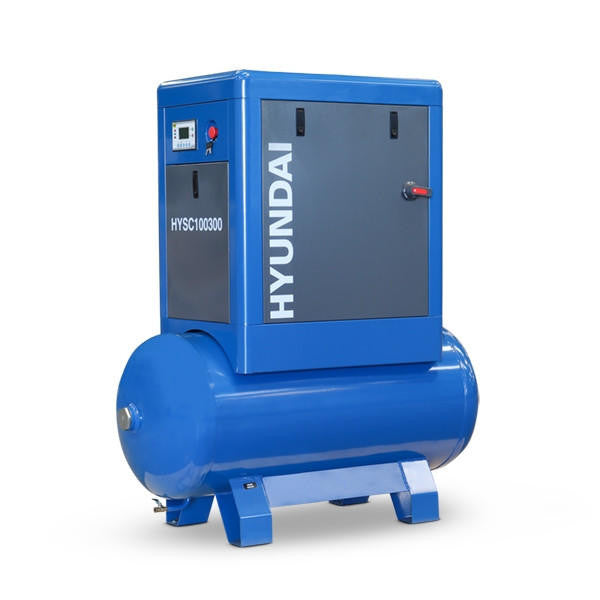

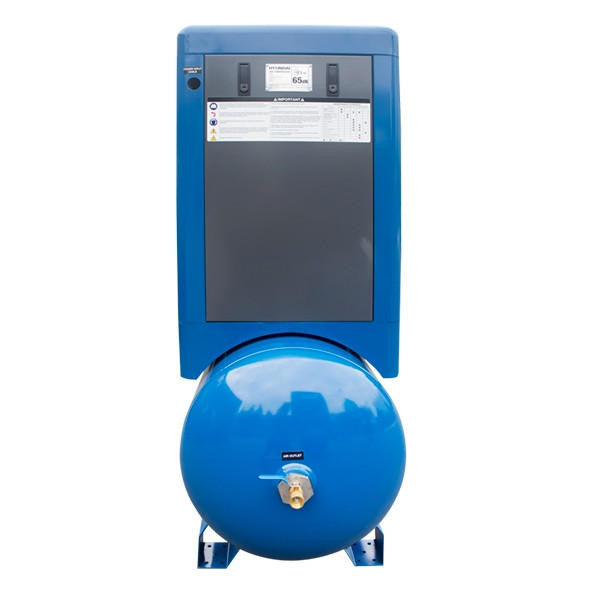

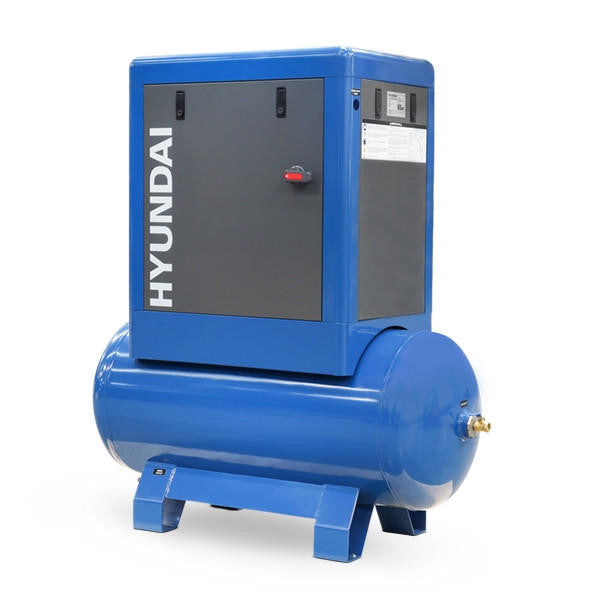

Hyundai 10hp 300 Litre Screw Compressor

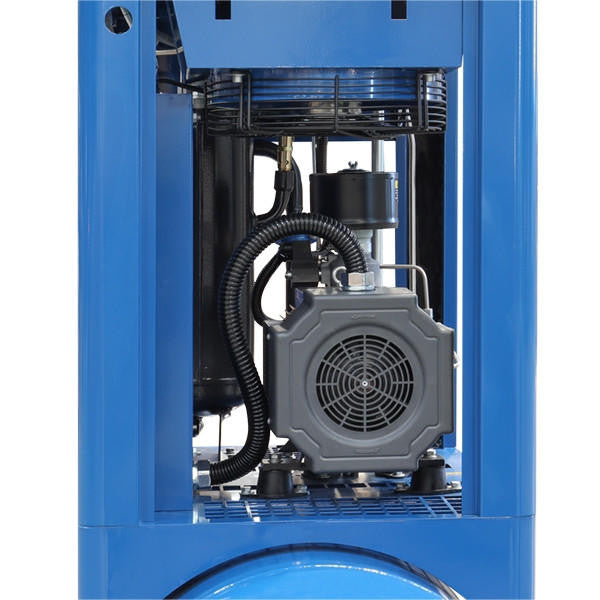

This Hyundai screw air compressor features a 300L tank, 10hp 3-phase motor directly coupled to the screw compressor head, so no belts to worry about.
Continous Operation

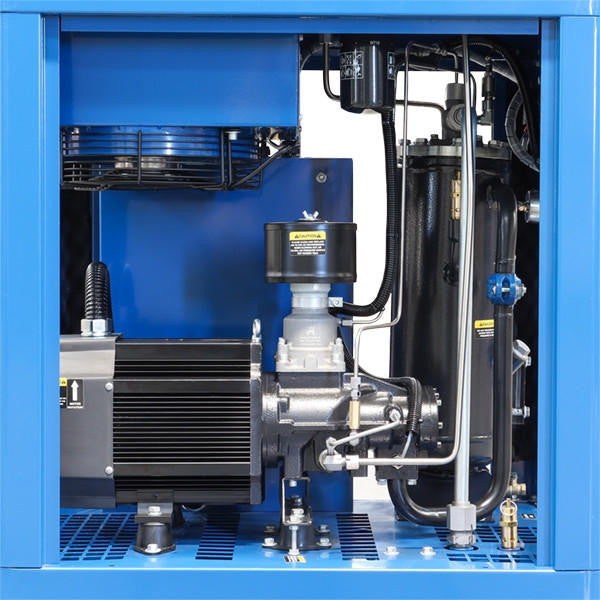

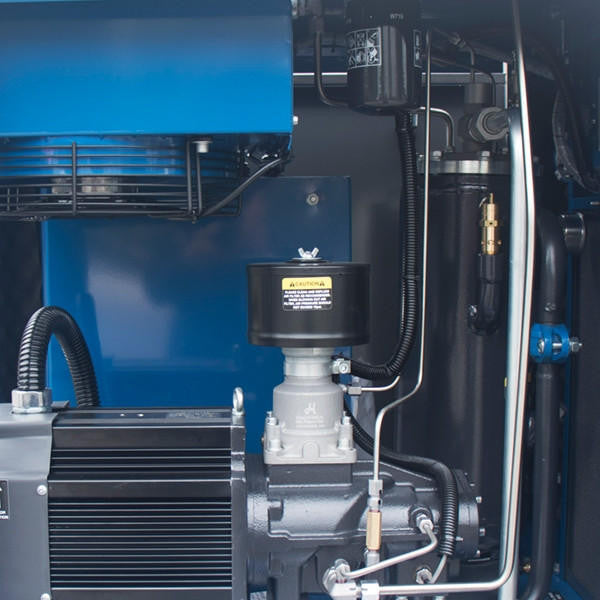

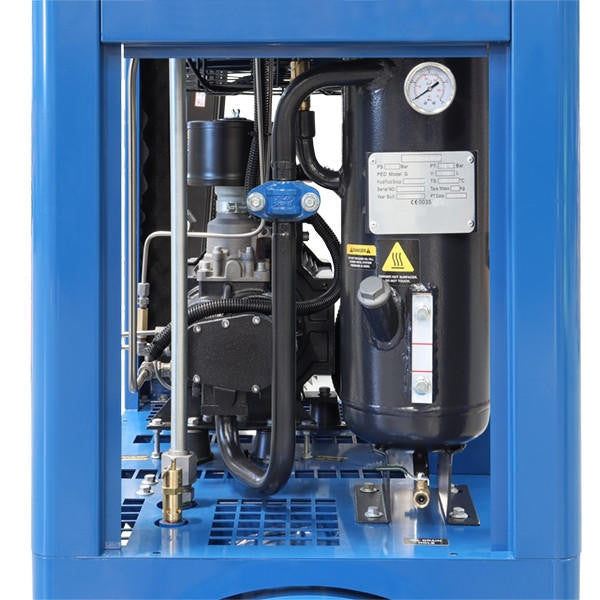

The high-efficiency motor and screw compressor unit is designed for continuous operation, with long service intervals and low maintenance.
Easy Access For Maintenance

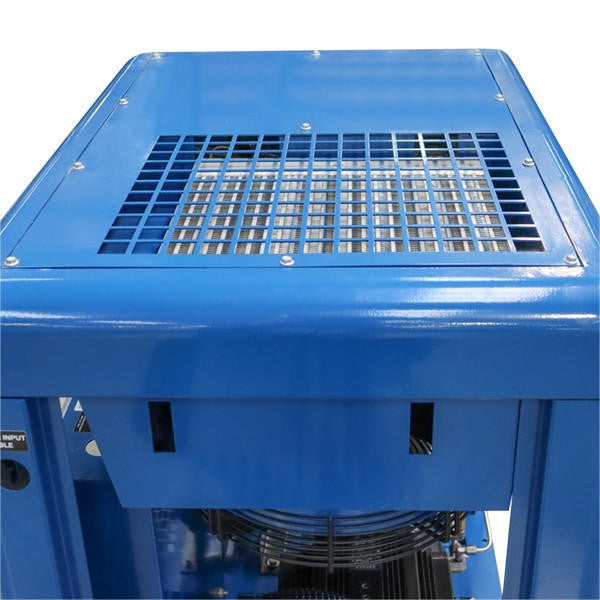

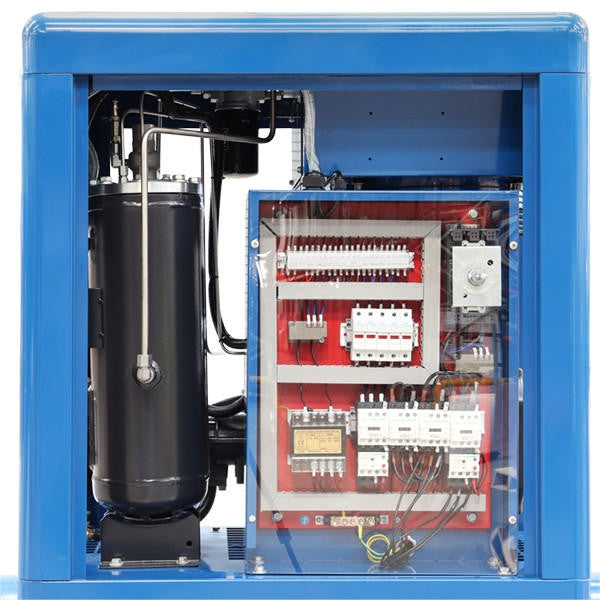

Full maintenance access through easy to remove side panels on the fully enclosed sound attenuating canopy.

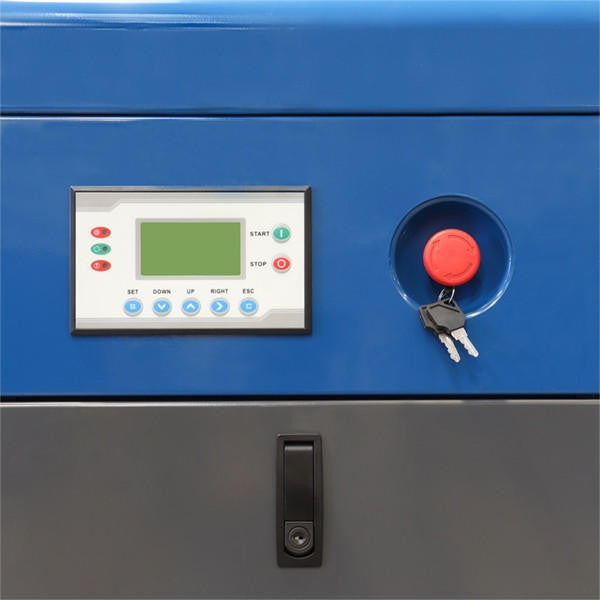

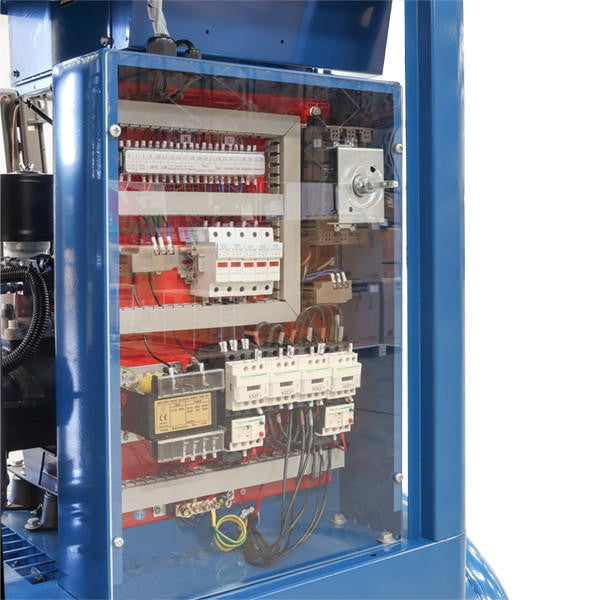

Digital Control Panel
The digital control panel monitors pressure, volts, amps, hours
Forklift Ports

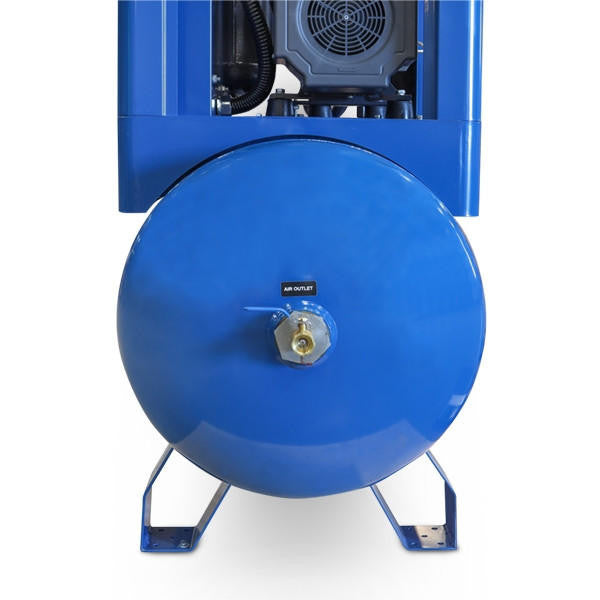

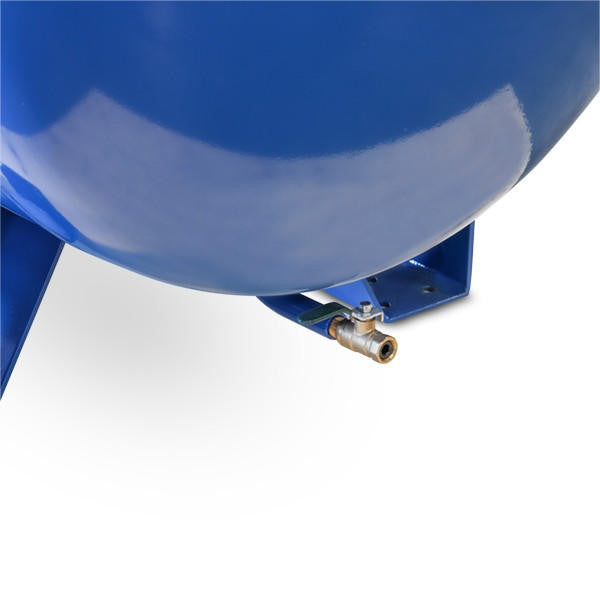

The 300 Litre tank forklift transport holes, a ¾” outlet fitting and water drain tap with CE certification to 12 bar.
Ideal Use
Ideal for spray shops, tyre-fitting garages, large workshops, small factories etc.
Specifications
| Air Displacement (CFM) | 38 @ 8 bar / 33 @10 bar |
| Air Displacement (L/min) | 990 @ 8 bar / 900 @ 10 bar |
| Air Flow FAD (CFM) | 36 @ 8 bar / 31 @10 bar |
| Air Flow FAD (L/min) | 940 @ 8 bar / 855 @ 10 bar |
| Air Outlet Connection | G3/4 |
| Cut-In Pressure (psi/bar) | 101.5/7 |
| Cut-Out Pressure (psi/bar) | 116/11.5 |
| Discharge Pressure (psi/bar) | 145/10 |
| Drive Type | Fixed Speed Direct Drive |
| Duty Cycle | S1 100% |
| EAN | 5056275799380 |
| Frequency (Hz) | 50 |
| Fuel / Power Source | Electric Hard Wired |
| Fully Assembled Dimensions (H x W x L) (mm) | 1560 x 600 x 1450 |
| Gross Weight (kg) | 345 |
| In The Box | Air Compressor & User Manual |
| Integral Air Dryer? | No |
| Max Pressure (psi/bar) | 145/10 |
| Model | HYSC100300 |
| Motor Power kW/hp | 7.5/10 |
| Net Weight (kg) | 305 |
| Noise Level @ 7m (dB) | 65 |
| Outlet Pressure Regulation Type | Fixed |
| Packaged Dimensions (H x W x L) (mm) | 1650 x 790 x 1700 |
| Phase | Three |
| Product Type | Air Compressor |
| Pump (RPM) | 2960 |
| Rated Power (kW) | 9.5 |
| Speed (RPM) | 2960 |
| Start Method | Switch |
| Tank Capacity (L) | 300 |
| Tank Material | Steel |
| Warranty (years) | 2 |
