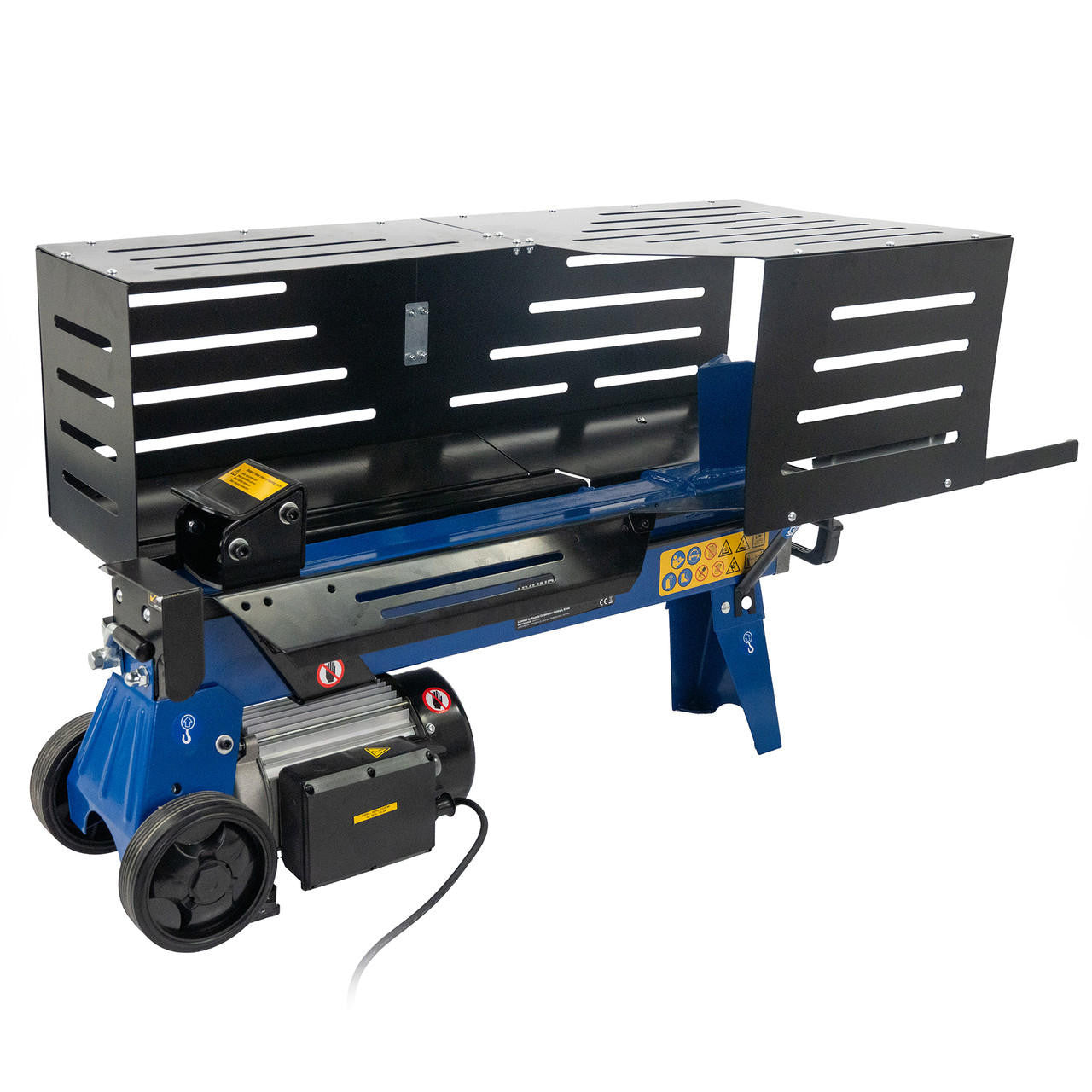

Hyundai 7 Tonne Horizontal Electric Log Splitter with Hydraulic Ram, Steel Protection Cage 520mm Length | HYLS7000HE
Hyundai 7 Tonne Horizontal Electric Log Splitter with Hydraulic Ram, Steel Protection Cage 520mm Length | HYLS7000HE
Regular price
£314.99
Sale price
£314.99
Regular price
inc. VAT
£262.49 ex. VAT
Tax included.
Shipping calculated at checkout.
3 year home warrantySee what's covered
- 3 year home warranty
- 1 year commercial warranty
- 90 day hire warranty
Terms and exclusions apply.
Find out more
3 year home warrantySee what's covered
- 3 year home warranty
- 1 year commercial warranty
- 90 day hire warranty
Terms and exclusions apply.
Find out more
Item available for pre-order — this product will be shipped after 19 December 2026.
Payment methods
Business Finance Options:
Product Details
Description

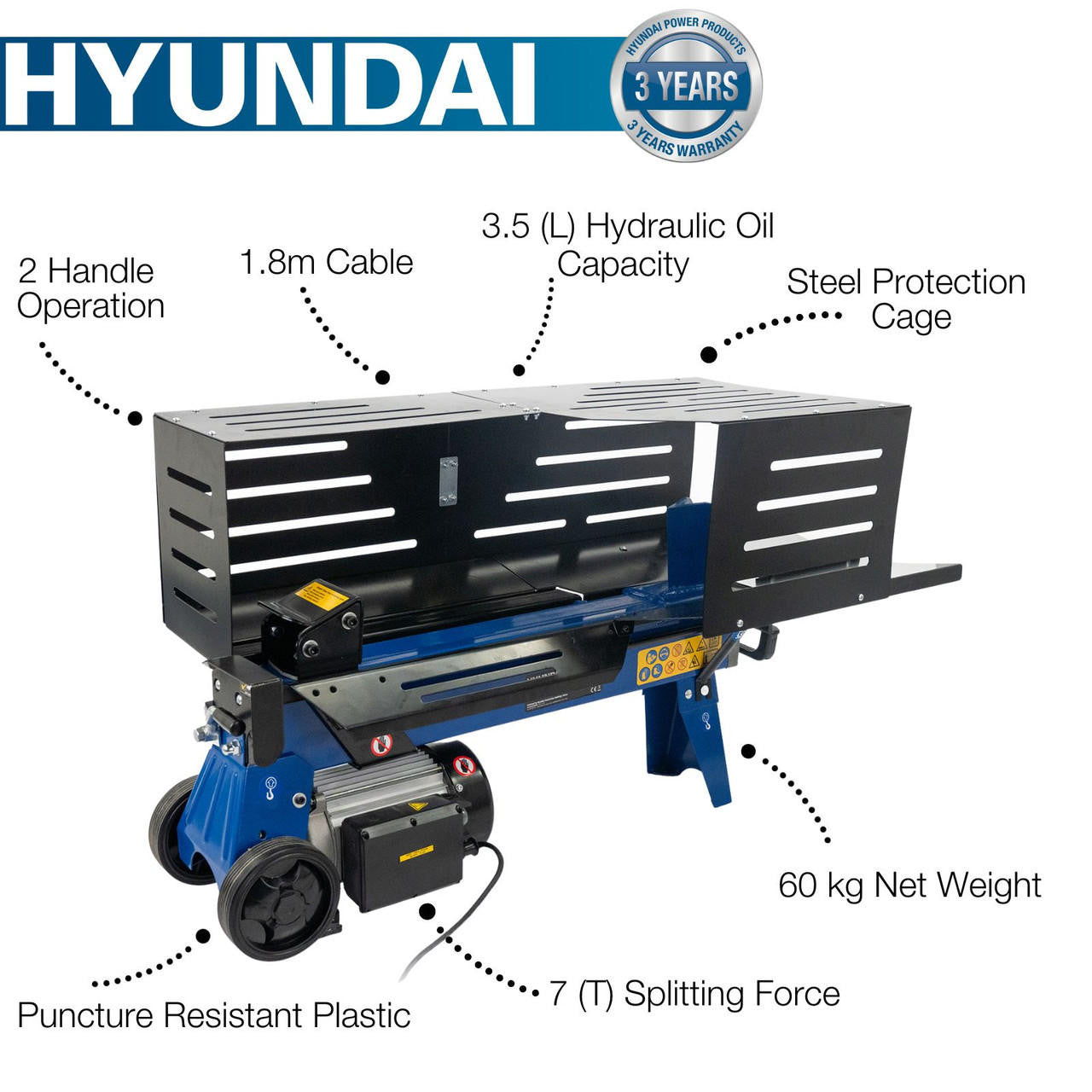

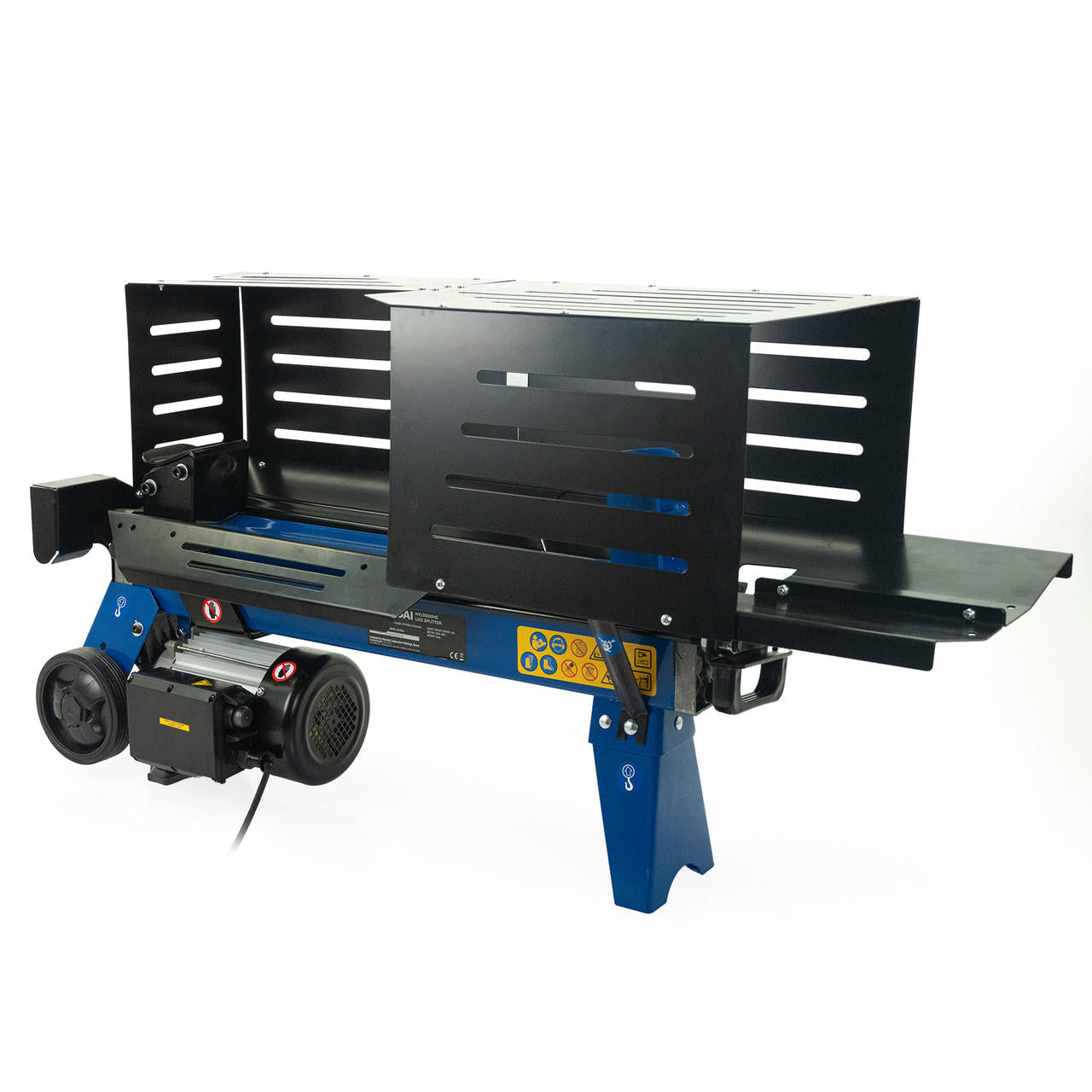

High Performance 7 Tonne Log Splitter
The Hyundai HYLS7000HE delivers a reliable 7-tonne splitting force through a high-pressure hydraulic system driven by a 2300 W motor. It easily splits hardwoods such as oak, beech, and ash - cutting preparation time for log burners and stoves dramatically. With a 12-second forward and 7-second retract cycle, it’s capable of processing around 100 logs per hour, depending on log size and operator rhythm.
Built for Domestic Use

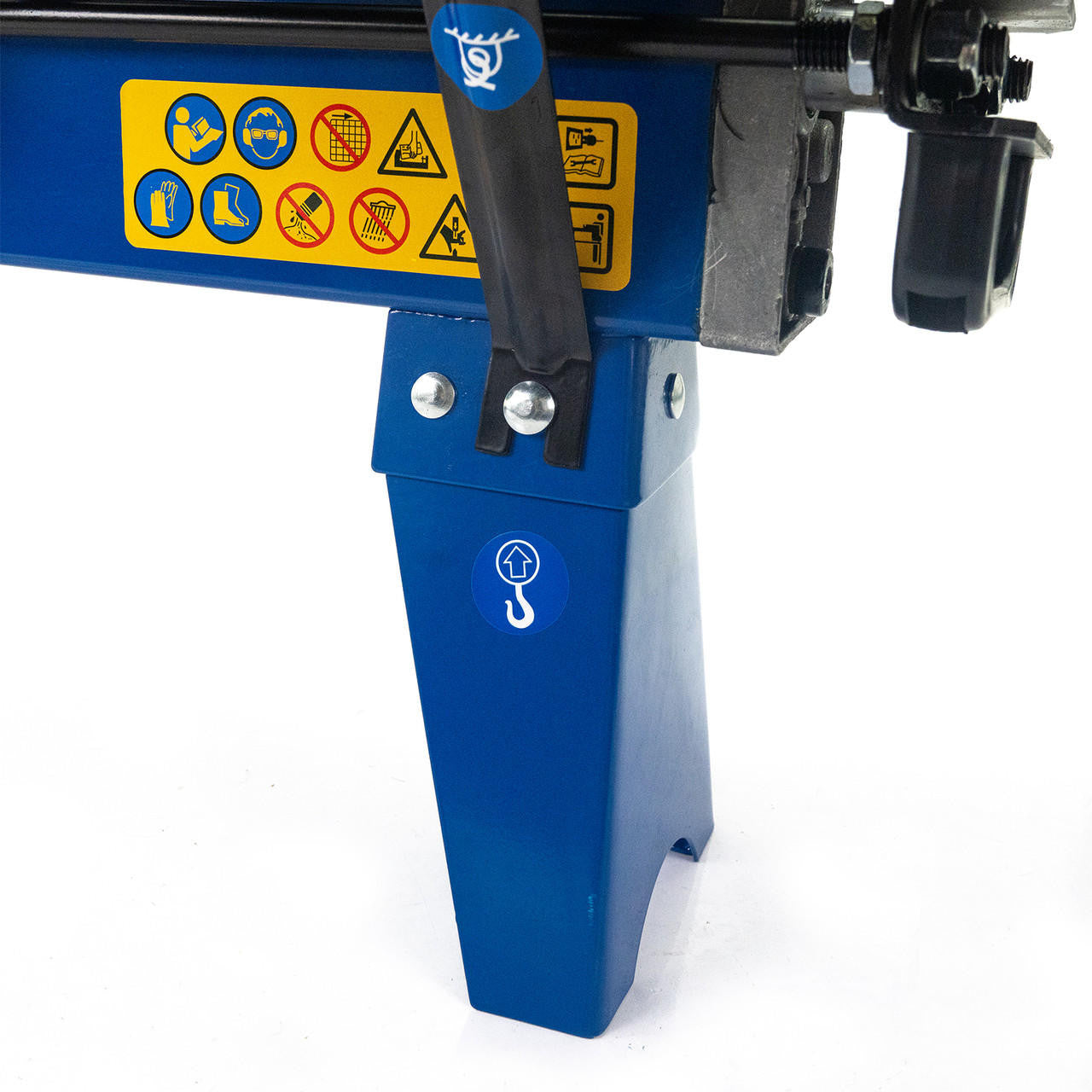

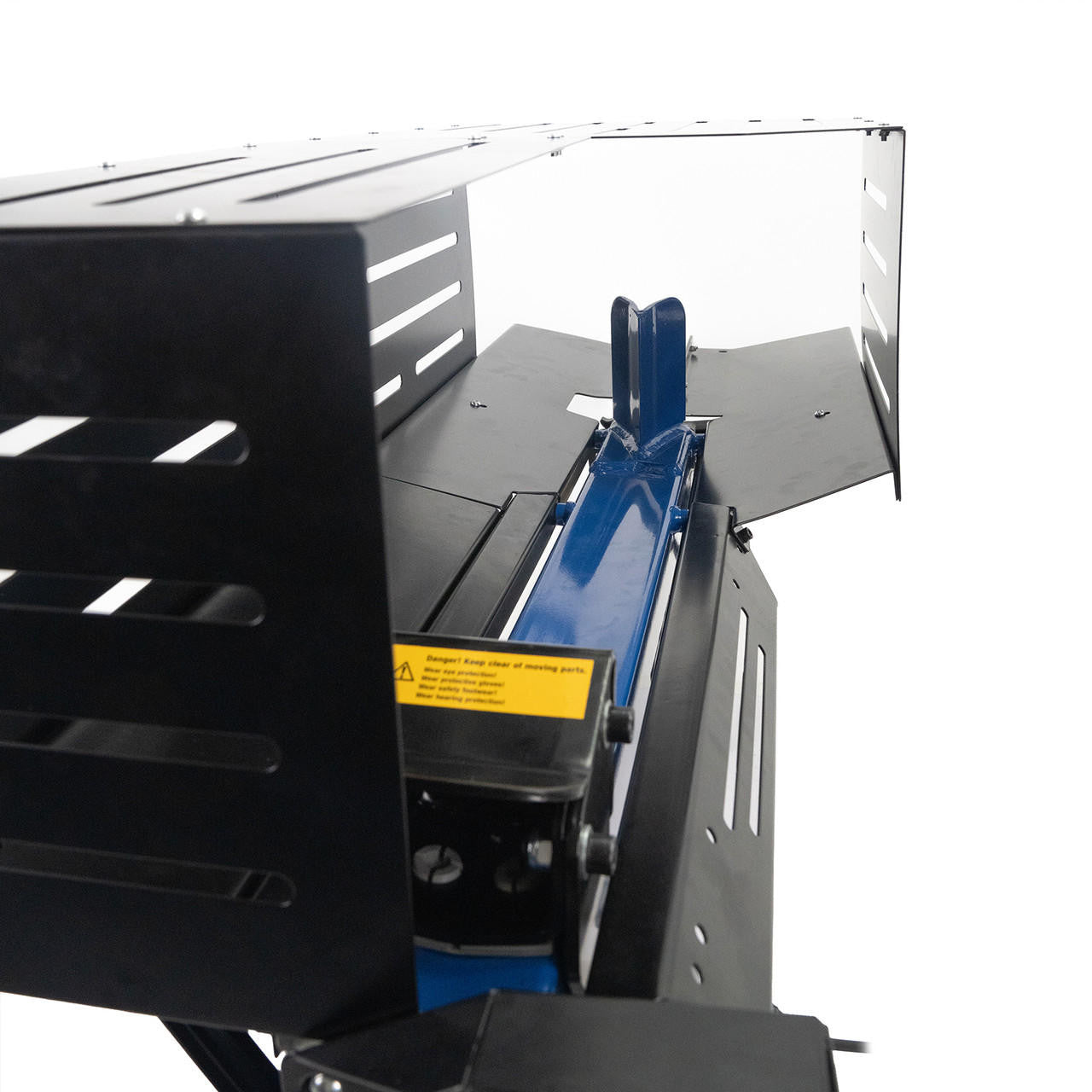

Compact, sturdy, and designed for everyday firewood preparation, the HYLS7000HE handles logs up to 52 cm long and 25 cm wide - ideal for standard UK stove or fireplace lengths. The powder-coated steel body resists corrosion, and solid wheels make it easy to reposition on level ground. The 116 × 43 × 61 cm frame fits neatly into a shed or garage for storage.
Safe and Easy to Operate
Safety is built into every element:

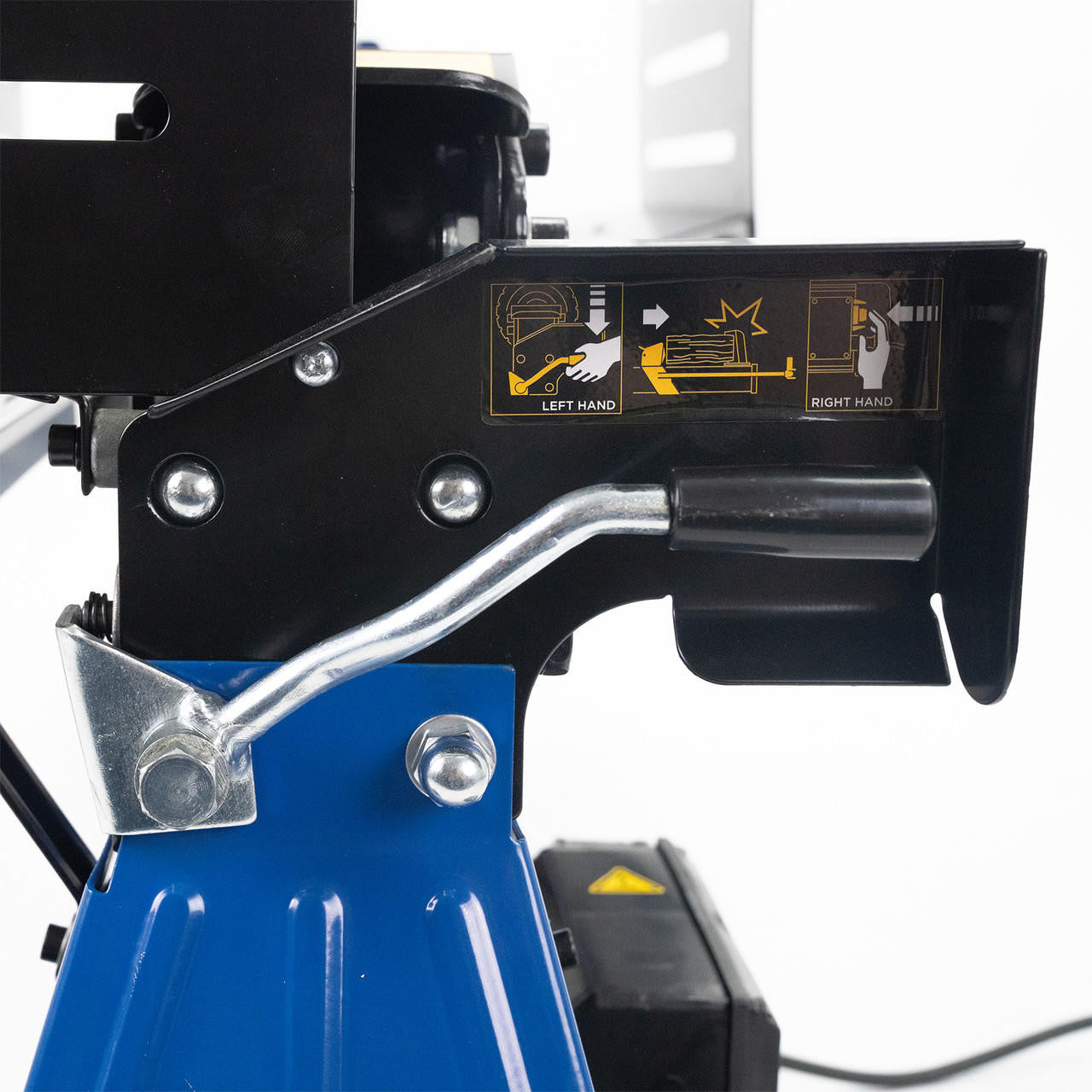

- The two-hand control system prevents accidental activation.

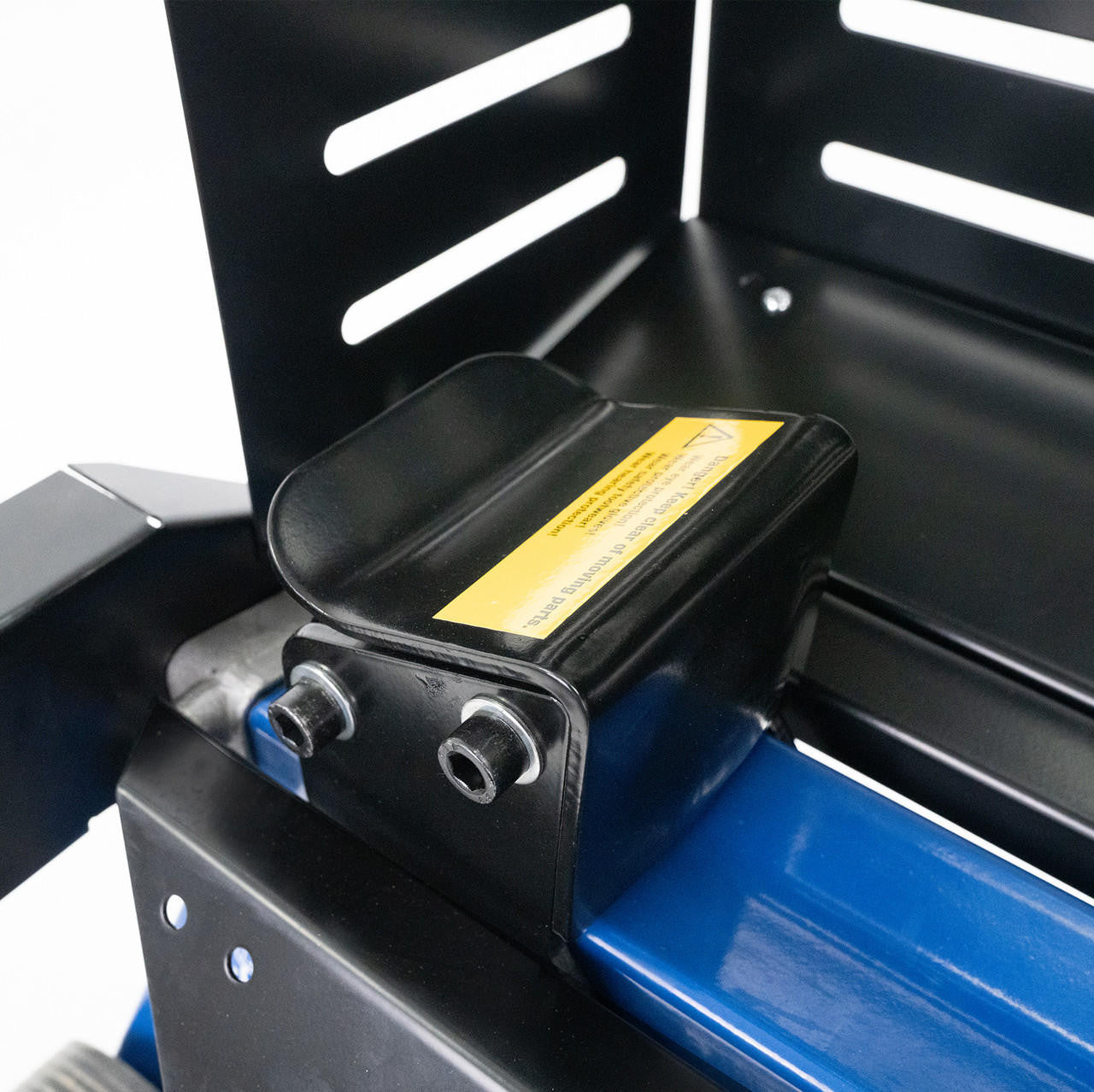

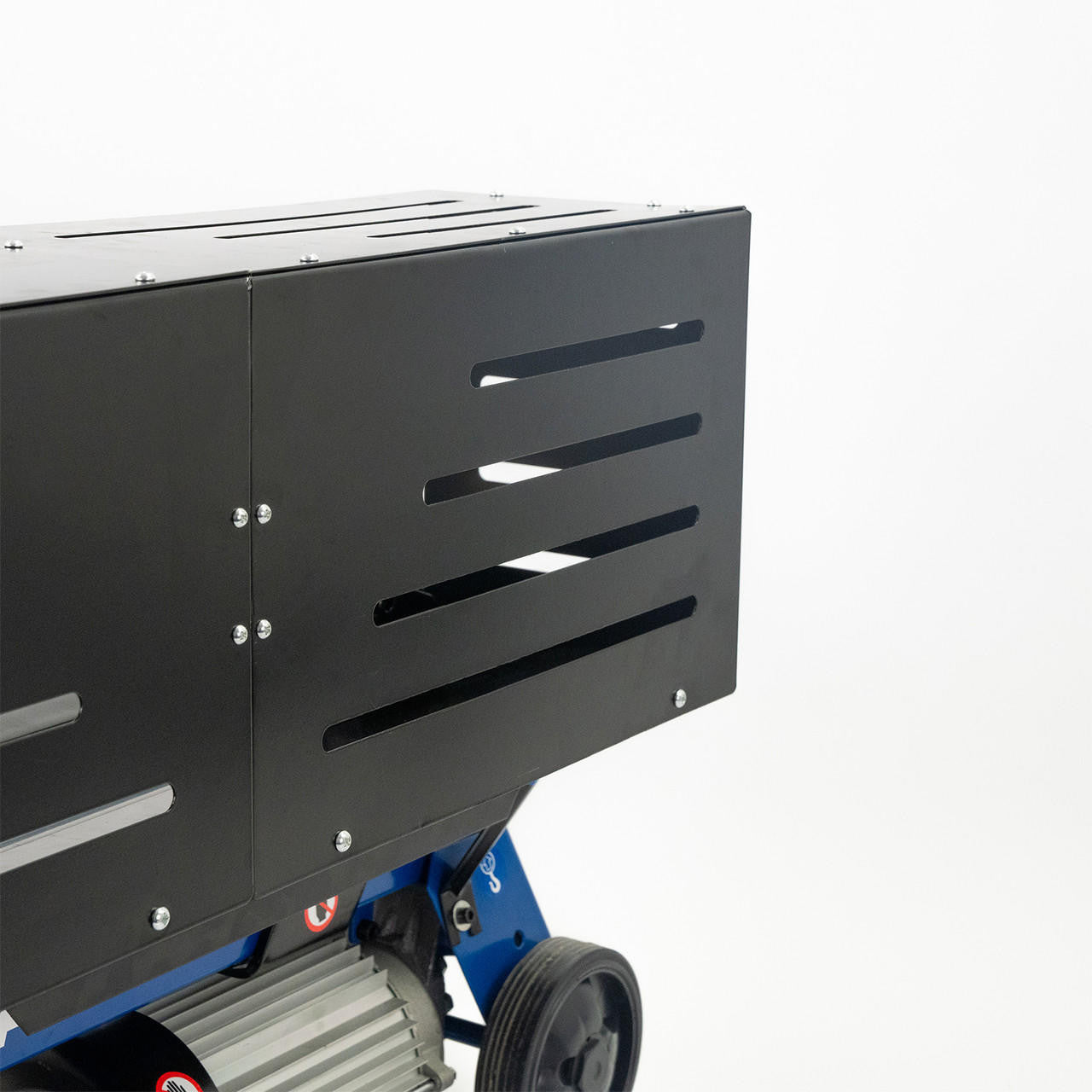

- The steel protection cage shields you from moving parts and debris.
- A pressure-limiting hydraulic valve provides overload protection.
- The bleed screw must be loosened 1.5 turns before use for proper pressure balance.
Low Maintenance
- Hydraulic oil capacity - 3.5 L (ISO 32 / ISO 46 oil).
- Change oil every 12 months or 50 hours of use
- Check oil level and vent screw before each session.

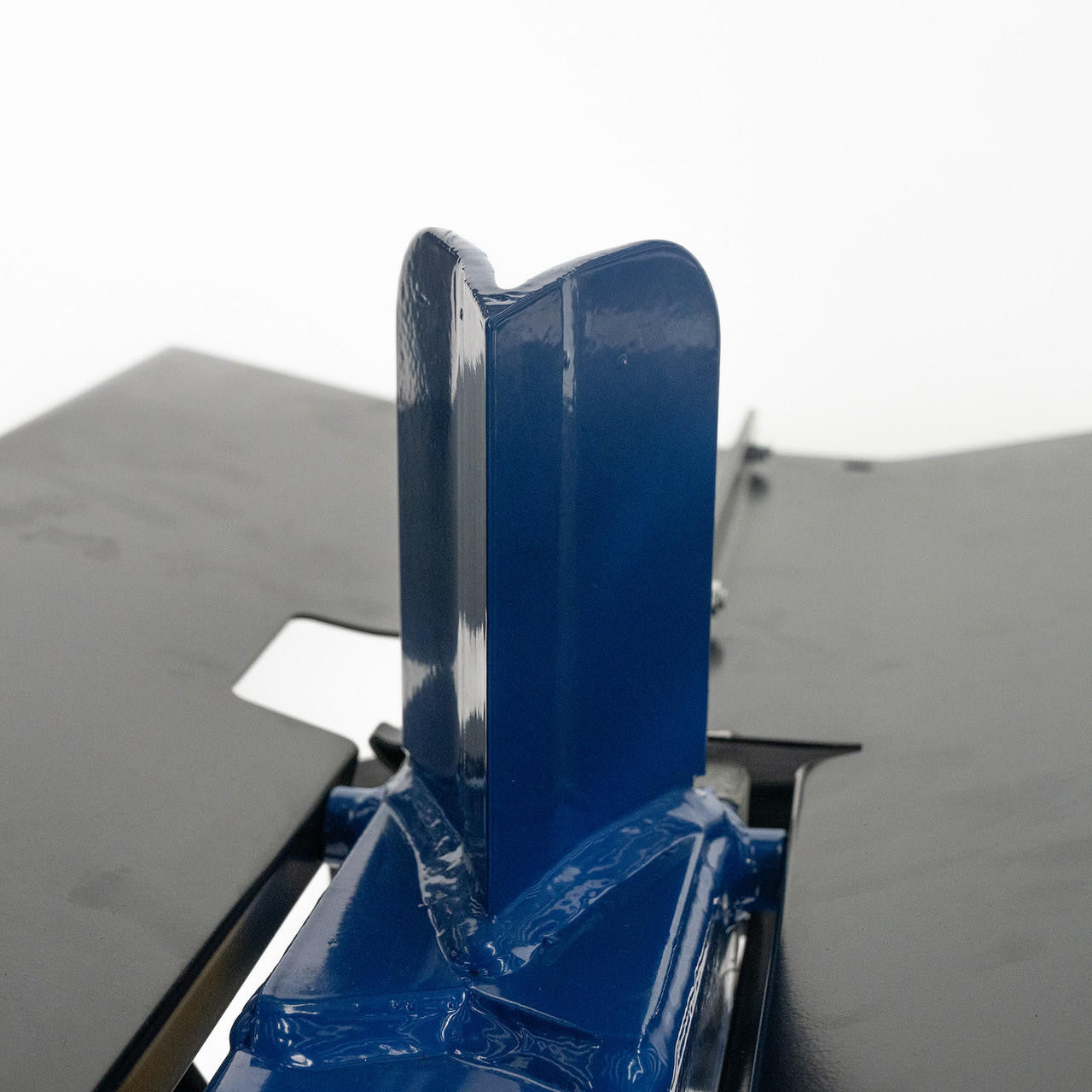

- Keep the wedge sharp and the ram free of debris.
- Machine weight – 60 kg (two-person lift recommended).
- Supplied mostly assembled – you’ll only need to attach the cage and handle before use.
Optional Accessories
– splits logs into quarters in one stroke.
– raises the working height for improved ergonomics.
Cleaner, Quieter Power

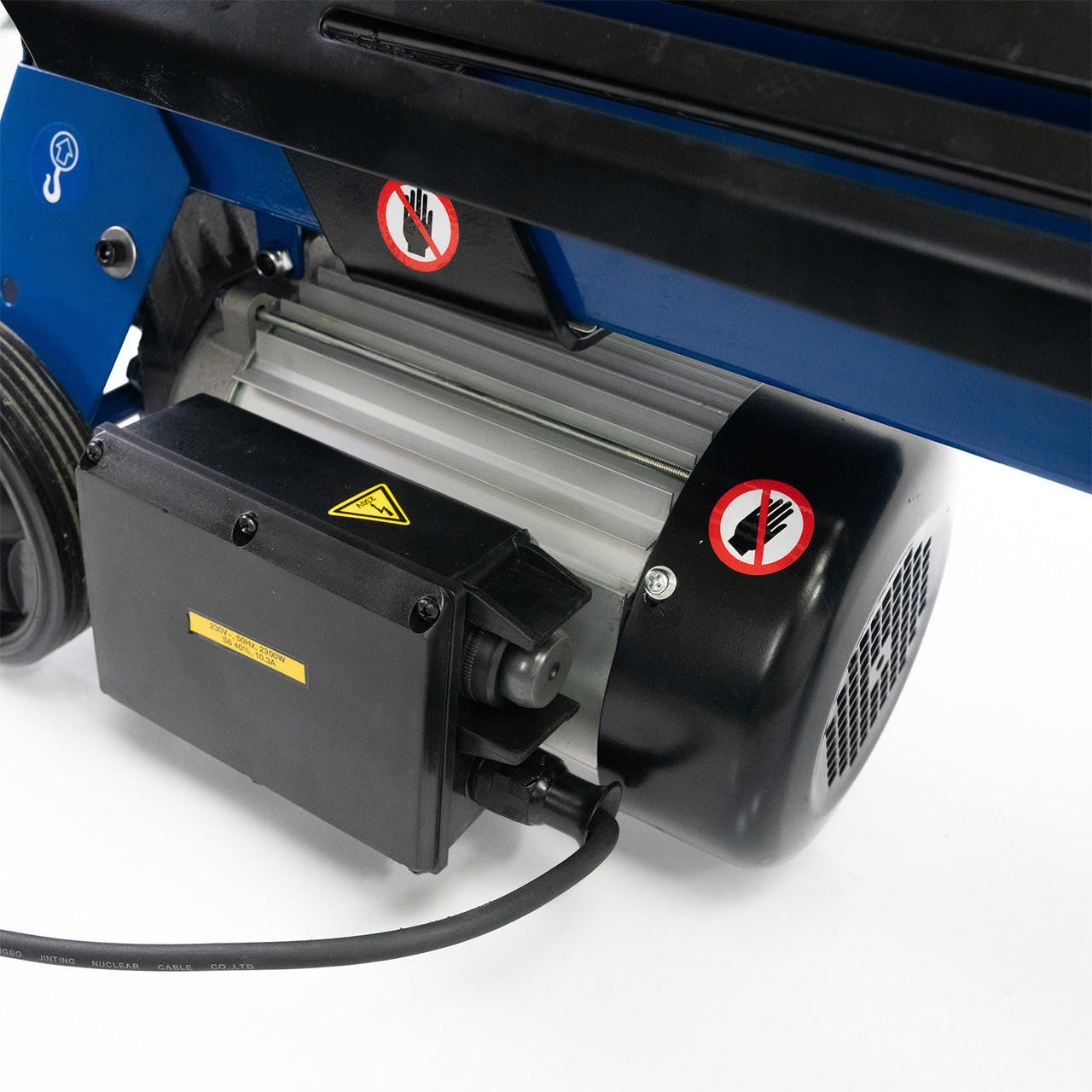

The 230 V electric motor runs quietly (under 90 dB at load) with zero exhaust emissions, making it ideal for use near homes and outbuildings.
Usage & Maintenance Tips
- Always loosen the bleed screw 1.5 turns before operation.
- Work on flat, dry ground with clear surroundings.
- Allow oil to circulate for two minutes before heavy splitting.
- Clean debris from wedge and ram after use.
- Replace hydraulic oil every 12 months.
Transport & Storage

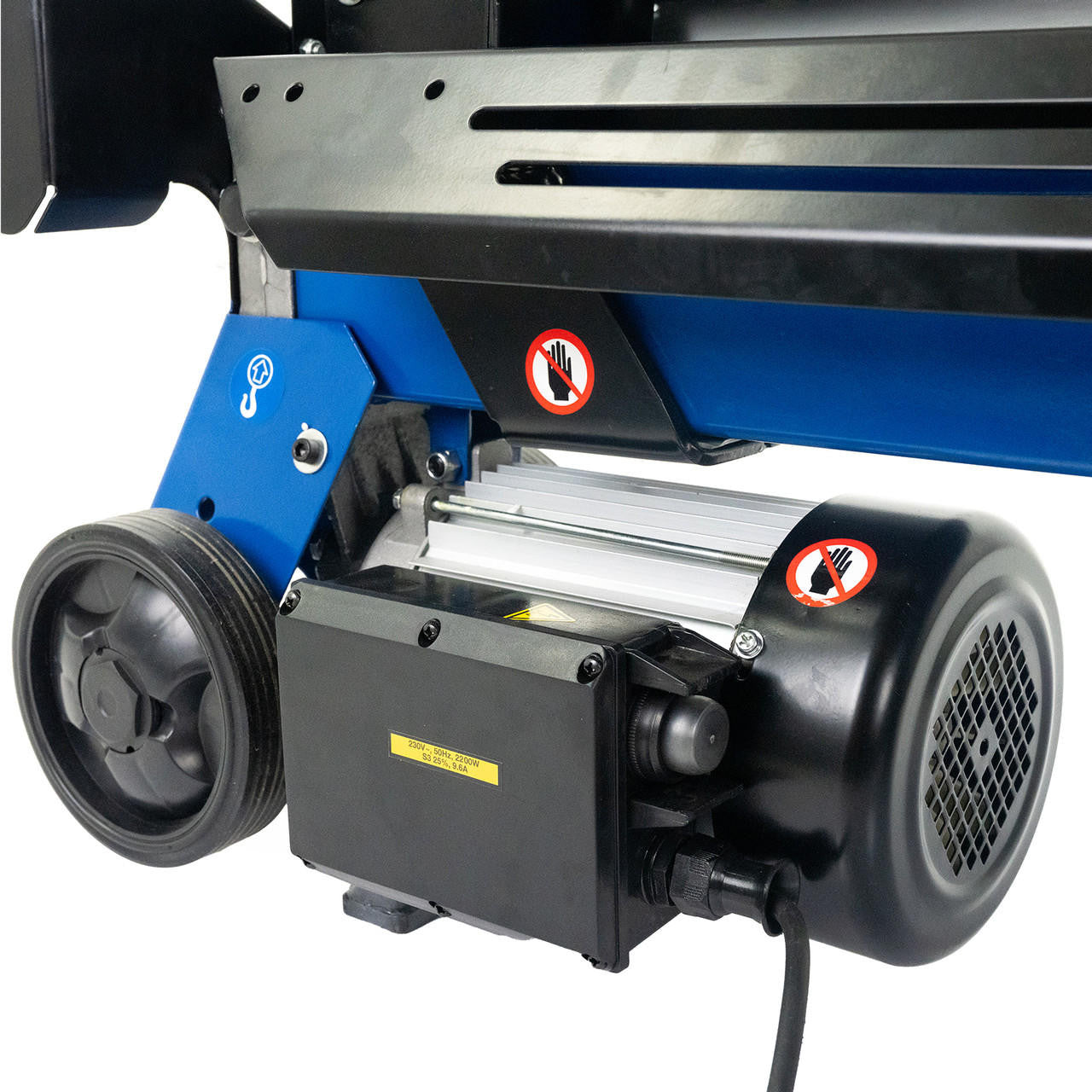

The HYLS7000HE weighs 60 kg and features solid 145 mm wheels for short-distance movement. Use two people to lift safely. Store indoors or under a waterproof cover.
Safety & Compliance
- Two-hand control for safe operation.
- CE / UKCA-certified steel safety cage.
- Double-insulated electrics for user protection.
- Pressure-limiting valve prevents overload.
- Noise and vibration within EU safety limits.
3 Year Warranty
Peace of mind thanks to our 3 year home-use warranty, or a 1 year commercial warranty, with full UK spares and large aftersales team to handle any enquiry

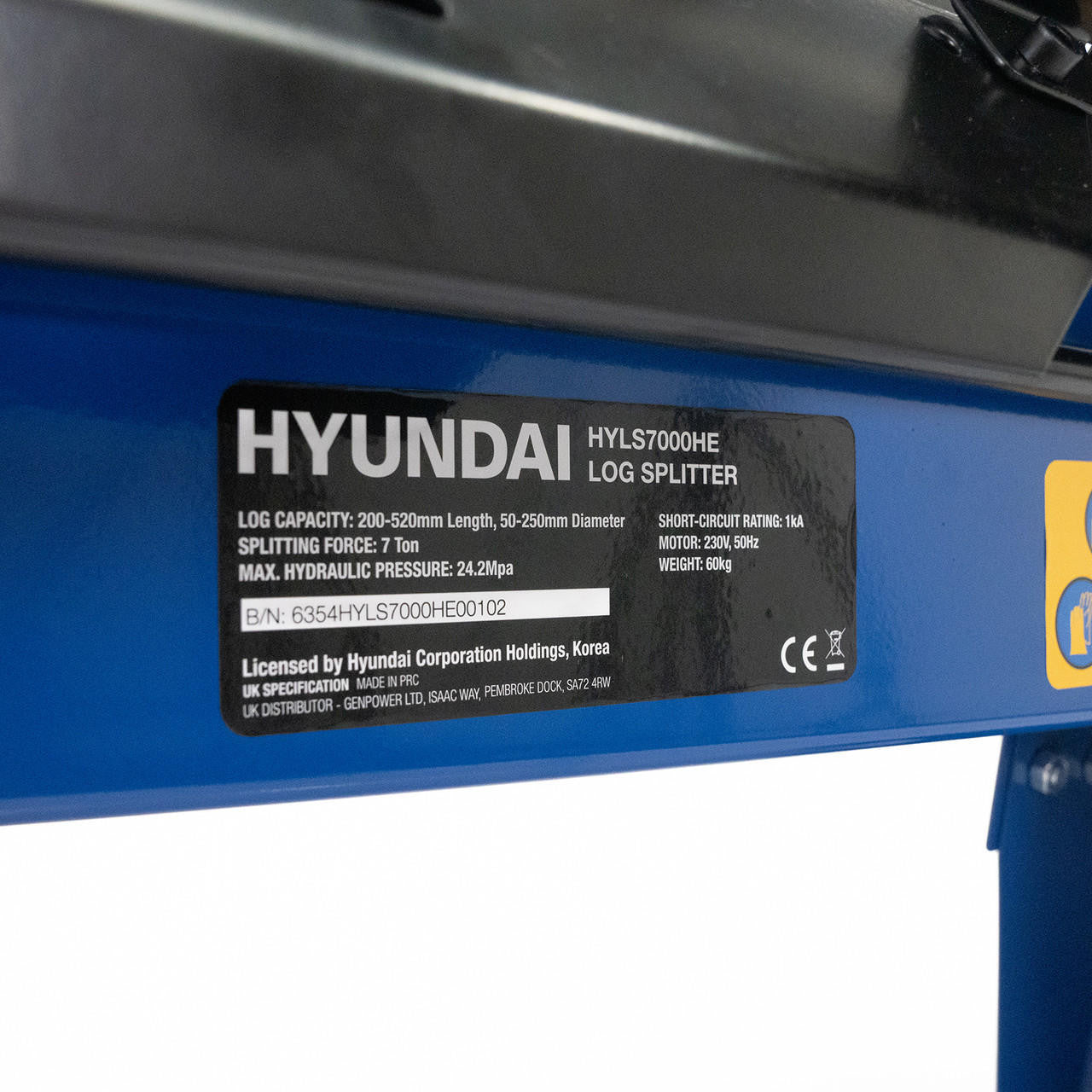

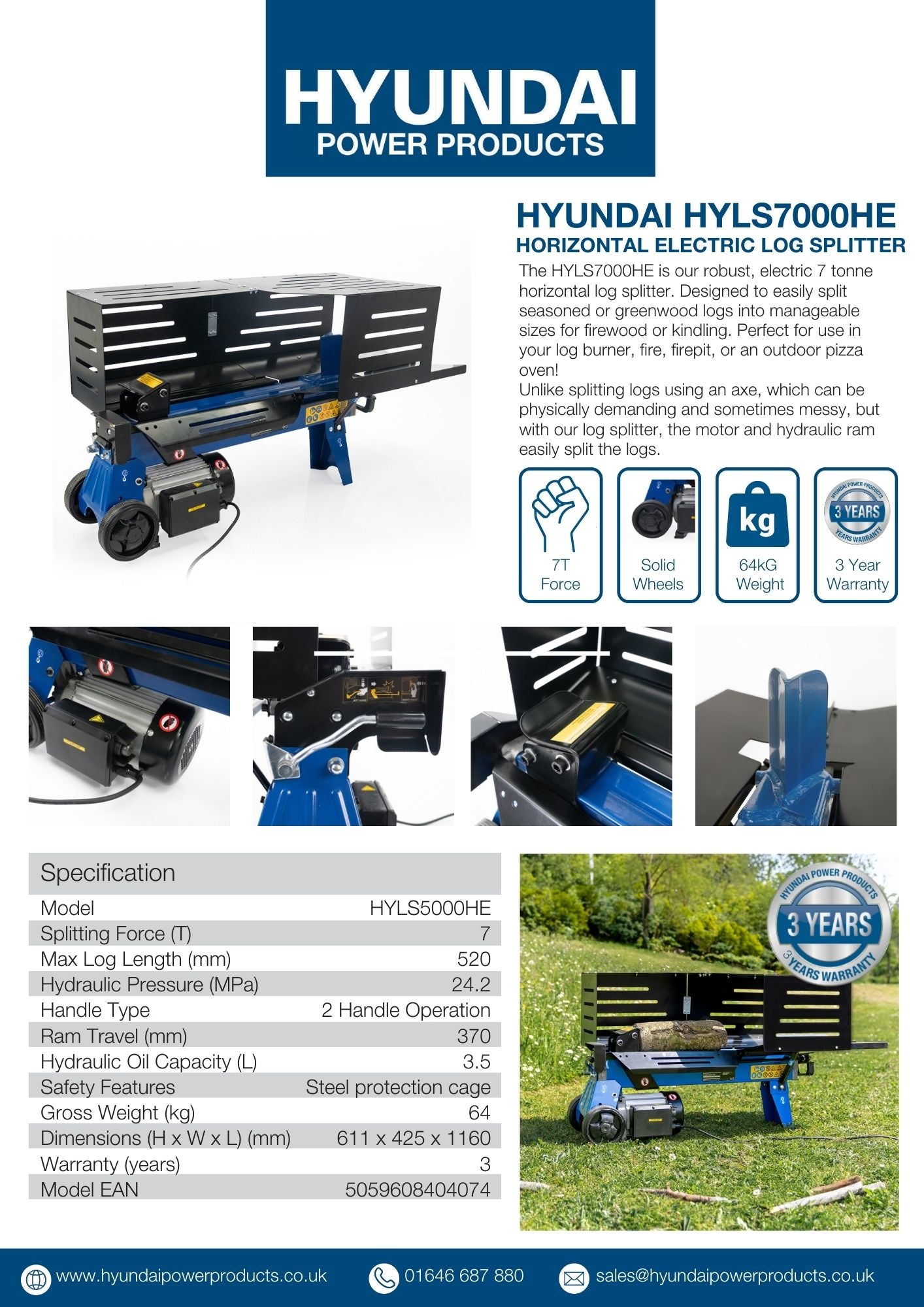

Specifications
| Model | HYLS7000HE |
| Splitting Force (T) | 7 t |
| Max Log Diameter (mm) | 250 mm |
| Max Log Length (mm) | 520 mm |
| Hydraulic Pressure (MPa) | 24.2 MPa |
| Hydraulic Oil Capacity (L) | 3.5 L |
| Forward Speed (mm/second) | 30.8 |
| Retract Speed (mm/second) | 52.9 |
| Ram Travel (mm) | 370 mm |
| Duty Cycle (Forward) | 12 seconds |
| Duty Cycle (Retract) | 7 seconds |
| Cable Length (m) | 1.8 m |
| Handle Type | 2 Handle Operation |
| Safety Features | Steel Protection Cage |
| Gross Weight (kg) | 64 kg |
| Net Weight (kg) | 60 kg |
| Wheels | Solid Wheels |
| Wheel Size (inches) | 6 in / 15 cm |
| Wheel Diameter (mm) | 145 mm |
| Sound Level (db) | 78.8 dbA under no load; 89.8 dbA under full load |
| Fully Assembled Dimensions (H x W x L) (mm) | 611 × 425 × 1160 mm |
| Package Dimensions (H x W x L) (mm) | 500 × 320 × 950 mm |
| Fuel/Power Source | Electric |
| Product Type | Log Splitter |
| Tyres | Puncture Resistant Plastic |
| Warranty | 3 years home use, 1 year commercial, 90 days hire |

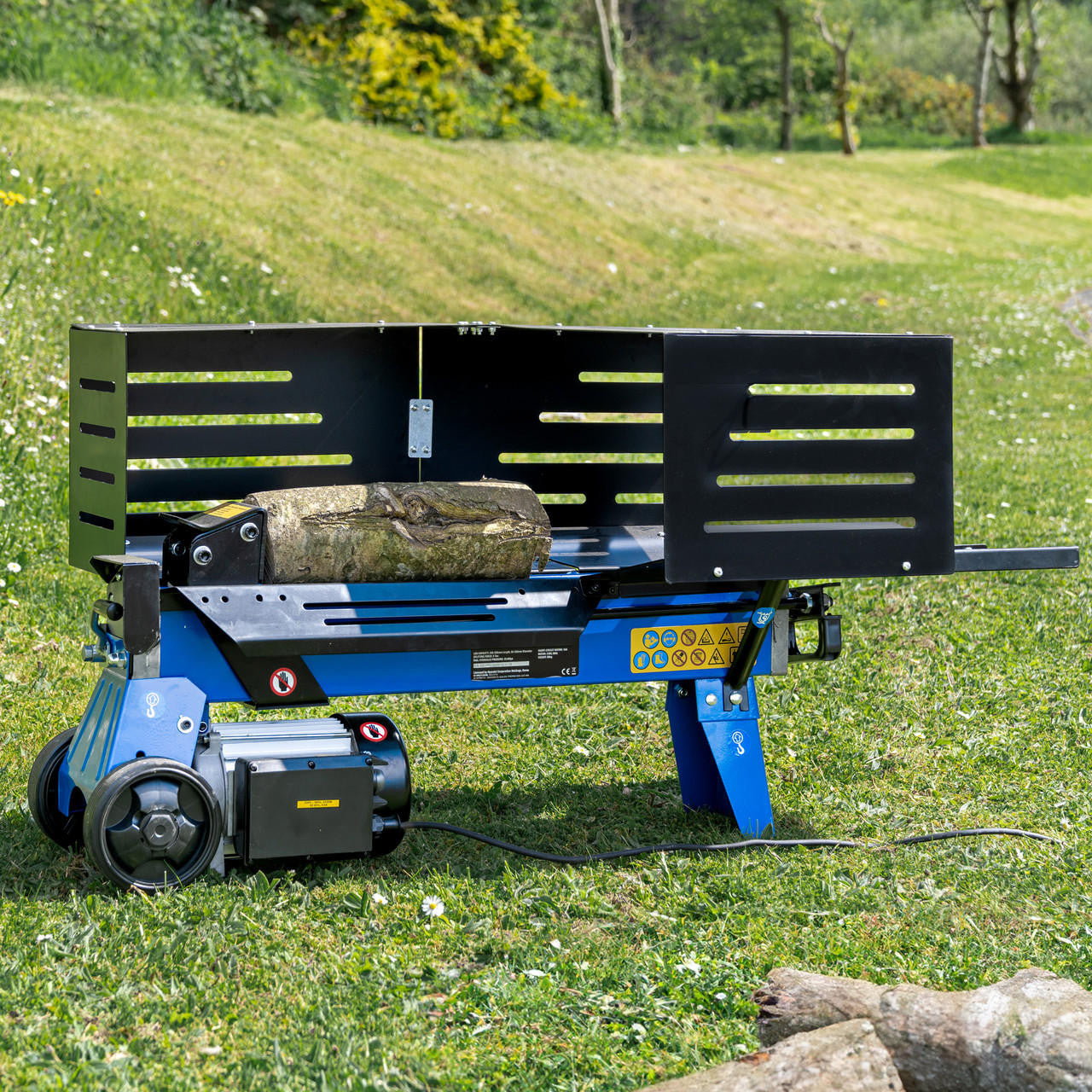

See it in action
What's in the Box
- HYLS7000HE log splitter
- Steel protection cage

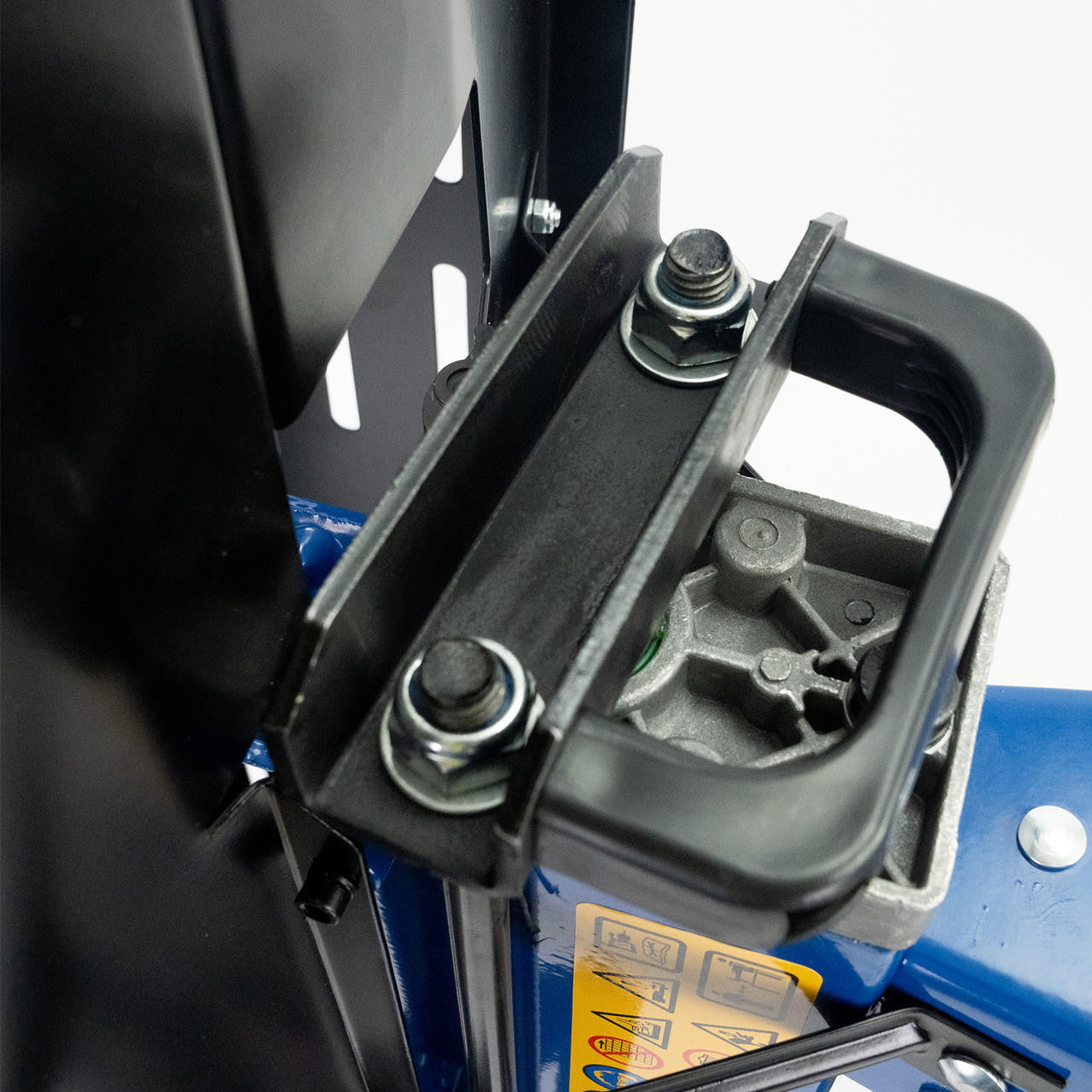

- Transport handle & fixings pack
- Instruction manual
- Hydraulic oil (pre-filled in most cases)
