Hyundai 81.5kg, 42cm, 196cc Petrol Plate Compactor, Wheel Kit and Paving Pad | HYCP9070
Hyundai 81.5kg, 42cm, 196cc Petrol Plate Compactor, Wheel Kit and Paving Pad | HYCP9070

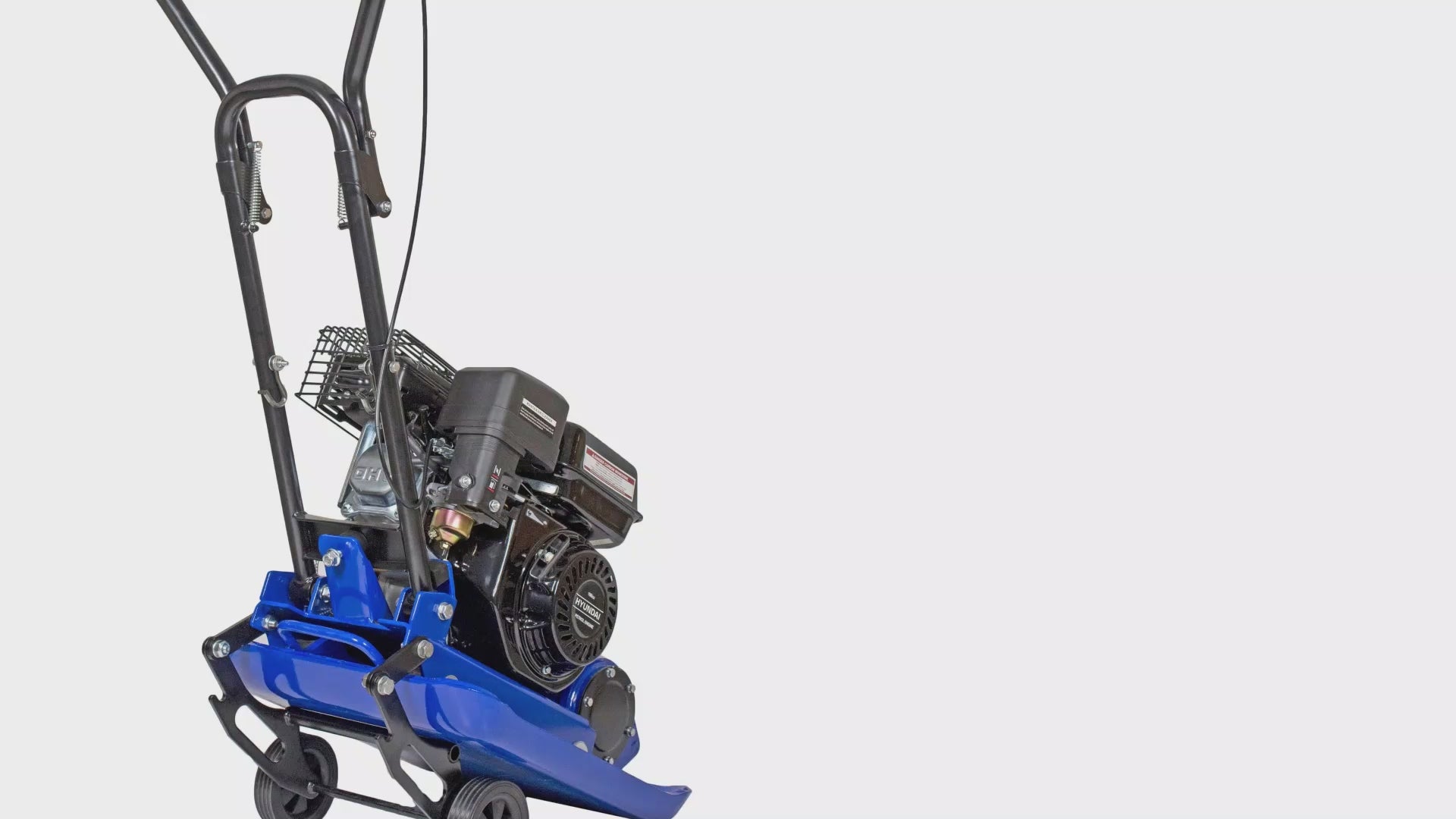

See it in action
Product Details
Description

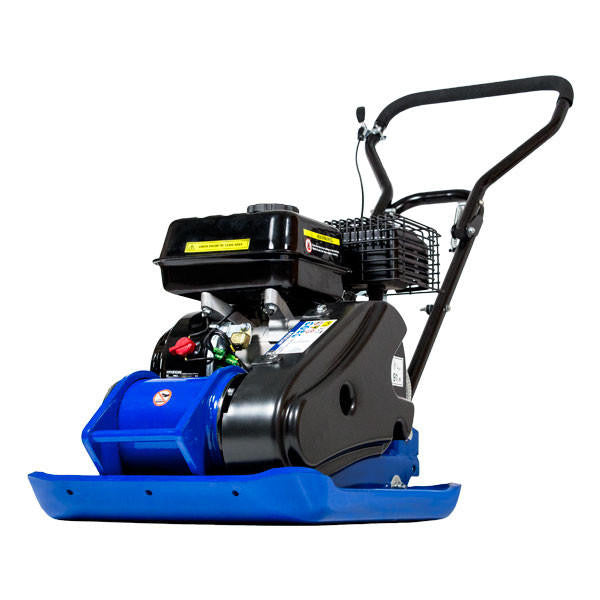

Hyundai Compactor
The HYCP9070 is the flagship compactor plate in the Hyundai Power Equipment range, powered by a 196cc 4-stroke petrol engine and equipped with an extra-large plate measuring 540mm x 420mm (L x W).
Suitable Uses
With a travelling speed of 15m/min and a compaction depth of 300mm, this compactor plate is suited for jobs both large and small, such as building driveways, patios, decking, block paving and more. Providing a cost-effective alternative to hiring. The HYCP9070 is more than capable of compacting soil, sand and gravel into a level and solid foundation.
The included paving pad will protect patios and block paving from being marked during use.
Easy To Use

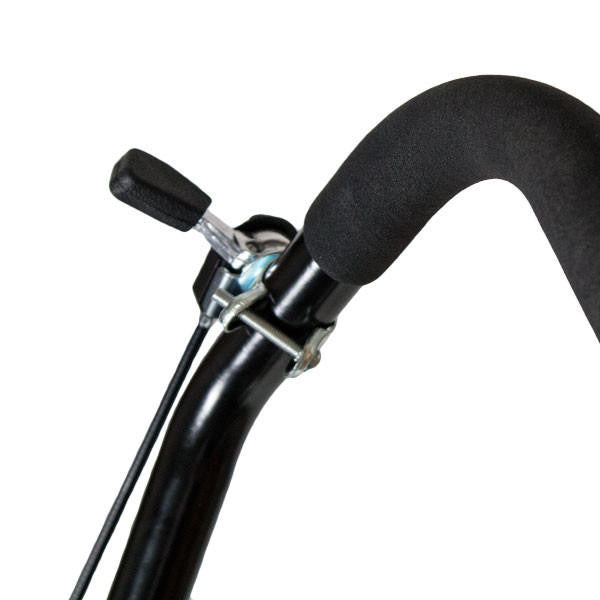

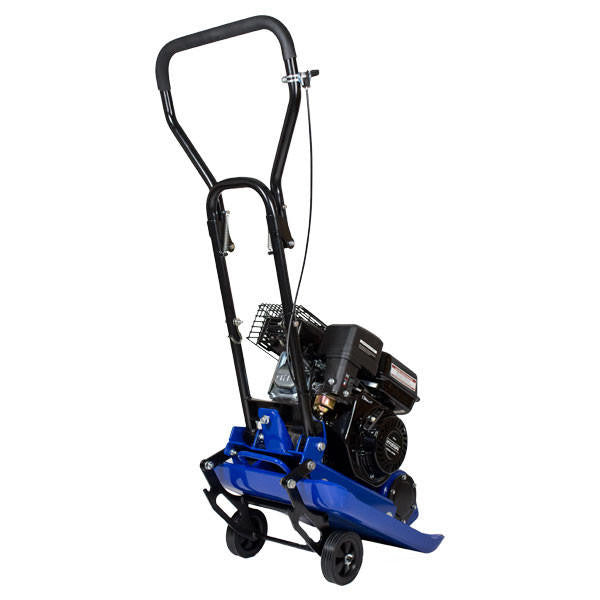

The wheel kit and guide handle allows for easy manoeuvrability and incorporates a soft grip foam to increase comfort for the user. The handle will also fold down for ease of transport and storage.
The controls to run the compactor plate are all within easy reach of the guide handle making operation and control simple.
Built To Last
The design of the HYCP9070 is simple and efficient, but it's built to last for years of reliable service. The V-belt is housed by a hard cover to protect it from the knocks and bumps of construction work, and the handle is covered by a soft grip for increased comfort during operation.
Specifications
| Brand | Hyundai |
| Commercial Warranty (years) | 1 |
| Compaction Depth | 300 |
| Condition | New |
| Drive Type | - |
| Engine Model | 168F |
| Engine Oil | SAE30 or SAE15W40 |
| Engine Size (cc) | 196 |
| Engine Type | Hyundai 4-Stroke |
| Exciter Oil Capacity (ml) | 100 |
| Exciter Speed (RPM) | 5500 |
| Fuel | Unleaded Petrol |
| Fuel Capacity (L) | 3.6 |
| Fuel Type / Power Source | Petrol |
| Fuel/Power Source | Petrol |
| Fully Assembled Dimensions (H x W x L) (mm) | 860 x 440 x 1220 |
| Gross Weight (kg) | 81.5 |
| Package Dimensions (H x W x L) (mm) | 475 x 440 x 755 |
| Plate Size (mm) | Plate Size (mm) |
| Plate Size (mm) | 540 x 420 |
| Rated Power (hp) | 5.2 |
| Rated Speed (RPM) | 3600 |
| Sound Level (db) | 86 |
| Travel Speed (m/min) | 15 |
| Vibration value m/s² | 17.42 |
| Warranty (years) | 3 |
| Net Weight (kg) | 79 |
| Handle Type | Soft Grip |
| Safety Features | Low Oil Protection |
| Model | HYCP9070 |
| Product Type | Compactor Plate |
| Start Method | Recoil |
| Compaction Depth (mm) | 300 |
| Engine Oil Capacity (ml) | 600 |
| Centrifugal Force (N) | 13000 |
What's in the Box
- Hyundai HYCP9070 Compactor Plate
- Wheel Kit
- Paving Pad
- Spark Plug
- User Manual
- Key Features

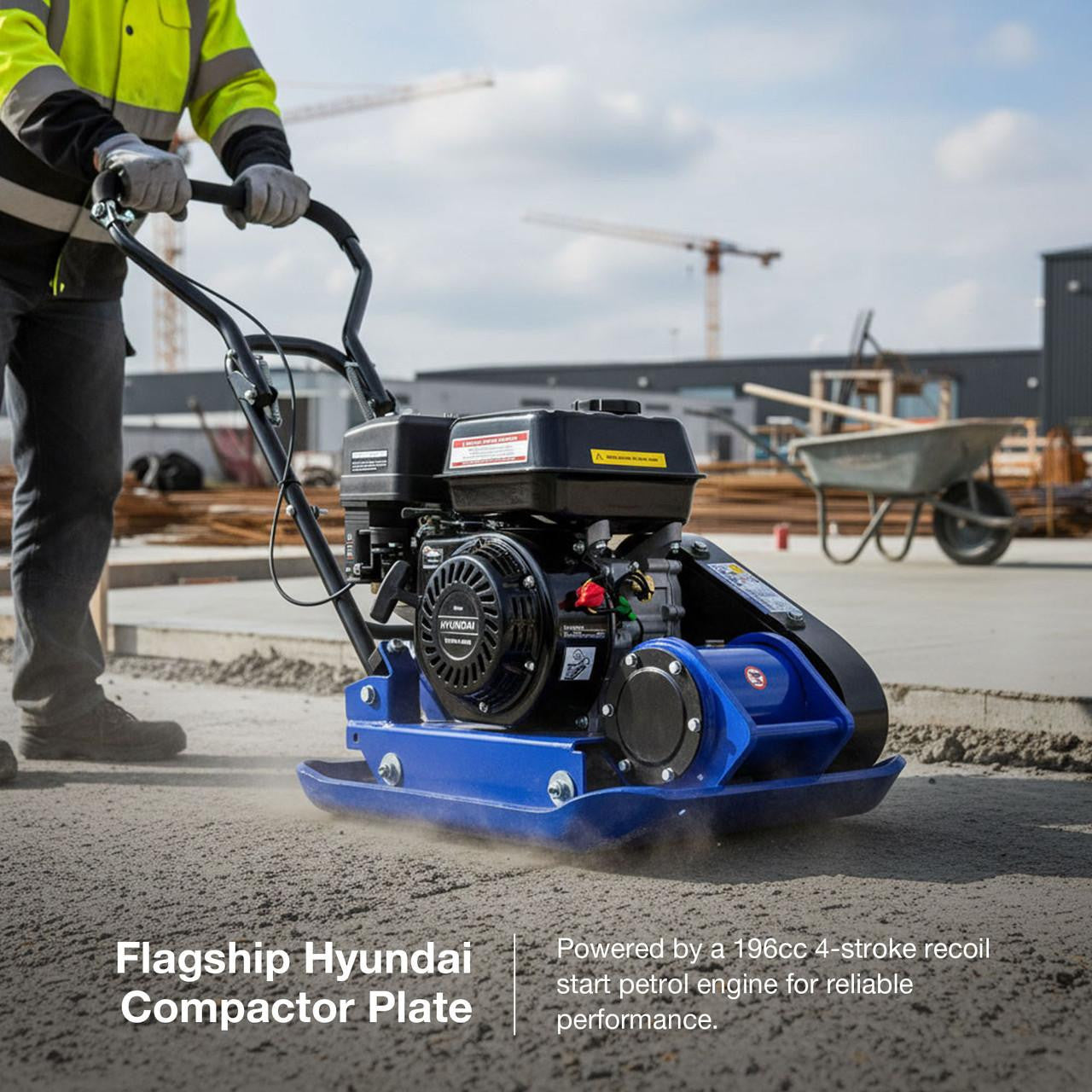

- The flagship Hyundai compactor plate, powered by a 196cc 4-stroke recoil start petrol engine for reliable performance.
- Ideal for compacting soil, gravel and sand together for patios, driveways, conservatories and more.
- Equipped with a large fuel tank for long running.
- Fitted with a large plate for working effectively on large areas.
- Has a travelling speed of 15m/min, with a compaction depth of 300mm.
- Wheel Kit and Paving Pad included.
