Complete Maintenance Guide: Hyundai HYM430SP Self-Propelled Petrol Lawnmower
How to Service Your Hyundai HYM430SP Lawnmower
Keeping your Hyundai HYM430SP lawnmower in top condition requires regular servicing. In this Hyundai Power Products guide, we will take you through essential maintenance steps, including changing the air filter, spark plug, oil, blade, recoil start mechanism, and making necessary cable adjustments.
Follow these steps to keep your lawnmower running smoothly.

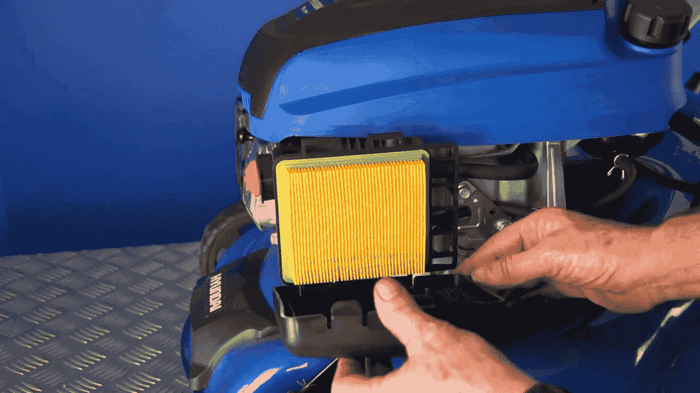

Air Filter Change
Estimated Completion Time - 5 minutes
Locate the air filter cover on the front left-hand side of the engine.
Push down on the two plastic lugs and pull the top of the box out.
Remove the old air filter and replace it with a new one.
Latch the bottom hinges back in place, push the cover firmly, and secure it.

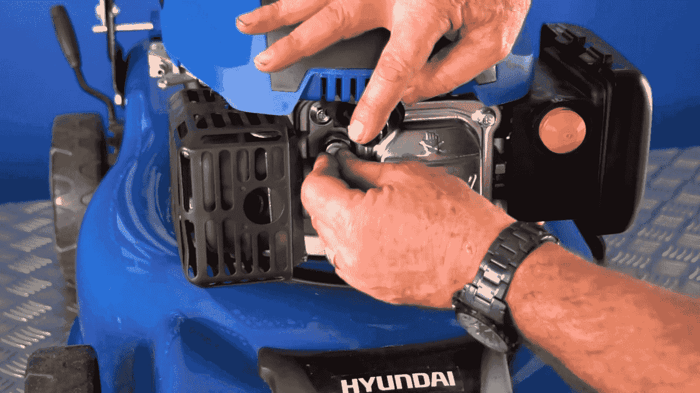

Spark Plug Change
Estimated Completion Time - 10 minutes
Locate the spark plug cap on the front left-hand side of the engine.
Firmly pull off the cap and set it aside.
Use a spark plug spanner and bar to loosen the spark plug.
Remove the old spark plug and replace it with a new one, ensuring it is screwed in by hand first.
Tighten the plug using the spanner and bar, then reattach the spark plug cap firmly.

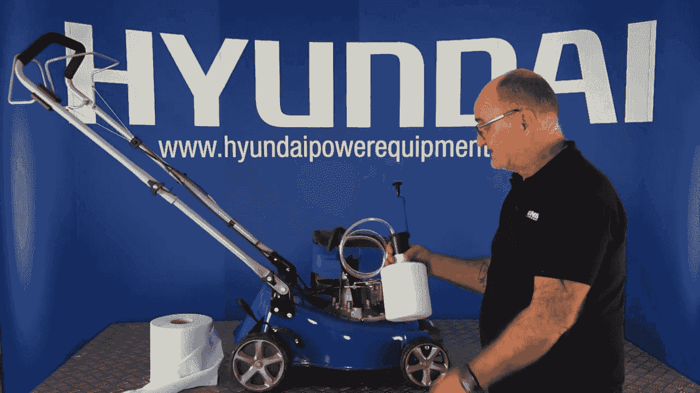

Oil Change
Estimated Completion Time - 20 minutes (inc. warming up the engine)
Run the lawnmower for about 15–20 minutes to warm the oil.
Remove the dipstick and choose a draining method:
Tip the lawnmower and let the oil flow out.
Use a fluid extractor to remove the oil via the dipstick hole.
Use the drain plug at the bottom of the mower to release the oil.
Once drained, refill the engine with fresh oil.
Check the oil level using the dipstick and ensure it is between the low (L) and high (H) marks.

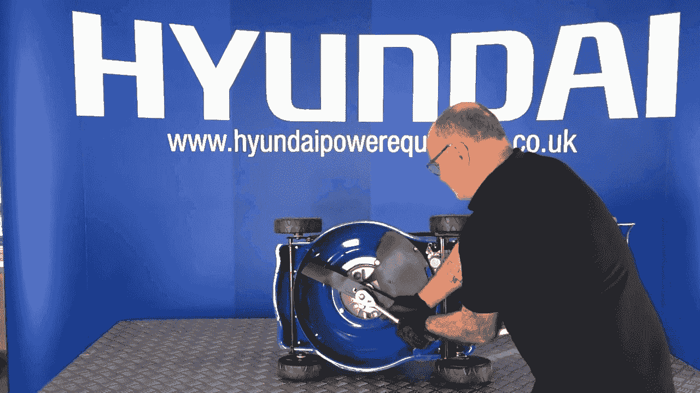

Blade Change
Estimated Completion Time - 15 minutes
Ensure the lawnmower is completely drained of oil and remove the spark plug cap for safety.
Wear gloves and hold the blade securely.
Use a 1/2-inch ratchet to loosen the bolt securing the blade.
Remove the bolt, washer, and blade.
Install the new or sharpened blade, ensuring the hump faces upwards.
Secure it with the bolt and washer, tightening it firmly.

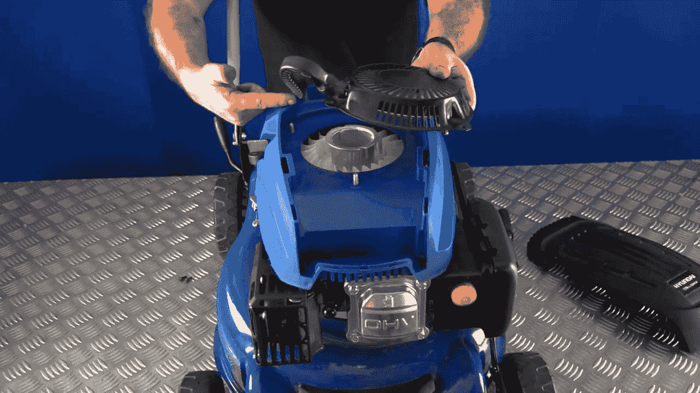

Recoil Start Mechanism Replacement
Estimated Completion Time - 5 minutes
Remove the plastic cover by unscrewing the two screws at the back.
Use a 10mm socket to undo the three nuts holding the recoil starter.
Lift the starter mechanism out and replace it with a new one.
Reinstall the nuts and reattach the plastic cover.

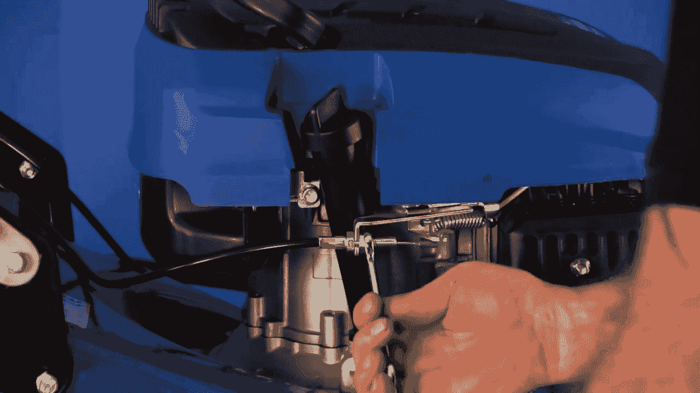

OPC Cable Adjustment
Estimated Completion Time - 5 minutes
Identify excessive slack in the OPC handle and cable.
Locate the cable adjustment point on the engine.
Use two 13mm spanners to loosen the locking nuts.
Pull the cable gently until resistance is felt.
Secure the nuts and check the OPC handle for proper tension.

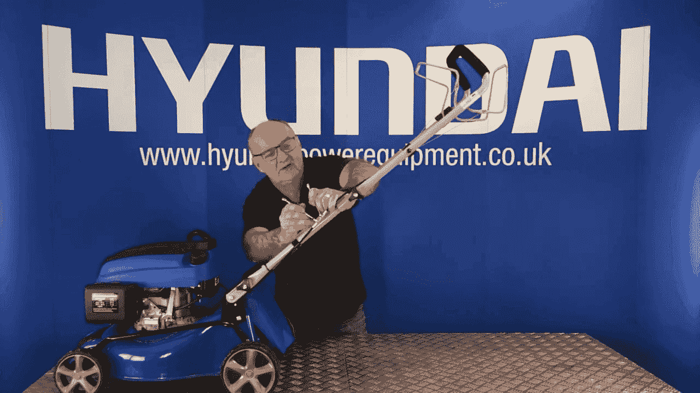

Clutch Cable Adjustment
Estimated Completion Time - 5 minutes
Identify slack in the clutch cable.
Locate the adjustment point near the engine.
Use an 8mm and 10mm spanner to loosen the locking nut.
Rotate the adjustment barrel anti-clockwise to remove slack.
Tighten the locking nut to secure the adjustment.
By following these simple steps, you can ensure your Hyundai HYM430SP lawnmower remains in excellent working condition. Regular maintenance extends the life of your machine and ensures optimal performance for a pristine lawn.
Need spare parts? Visit Hyundai Power Products for genuine replacements!
Read more in our knowledge base including lour UK lawn care guide, lawn mower maintenance guide and Hyundai petrol mower servicing guide.
